Light-Duty Manual Hand Winch
Light-duty manual hand winch with 100–300 kg load capacity. Open steel-plate frame with a divided grooved drum and spring-loaded rope presser for clean, tangle-free winding. Compact and power-free — ideal for small theaters, school auditoriums, studios and exhibition rigging.
Technical Specifications
Key Features
- Open steel-plate frame — lightweight, compact and easy to install
- Divided drum keeps each rope in its own groove — no crossing or overlapping
- Spring-loaded rope presser keeps the rope seated on the drum

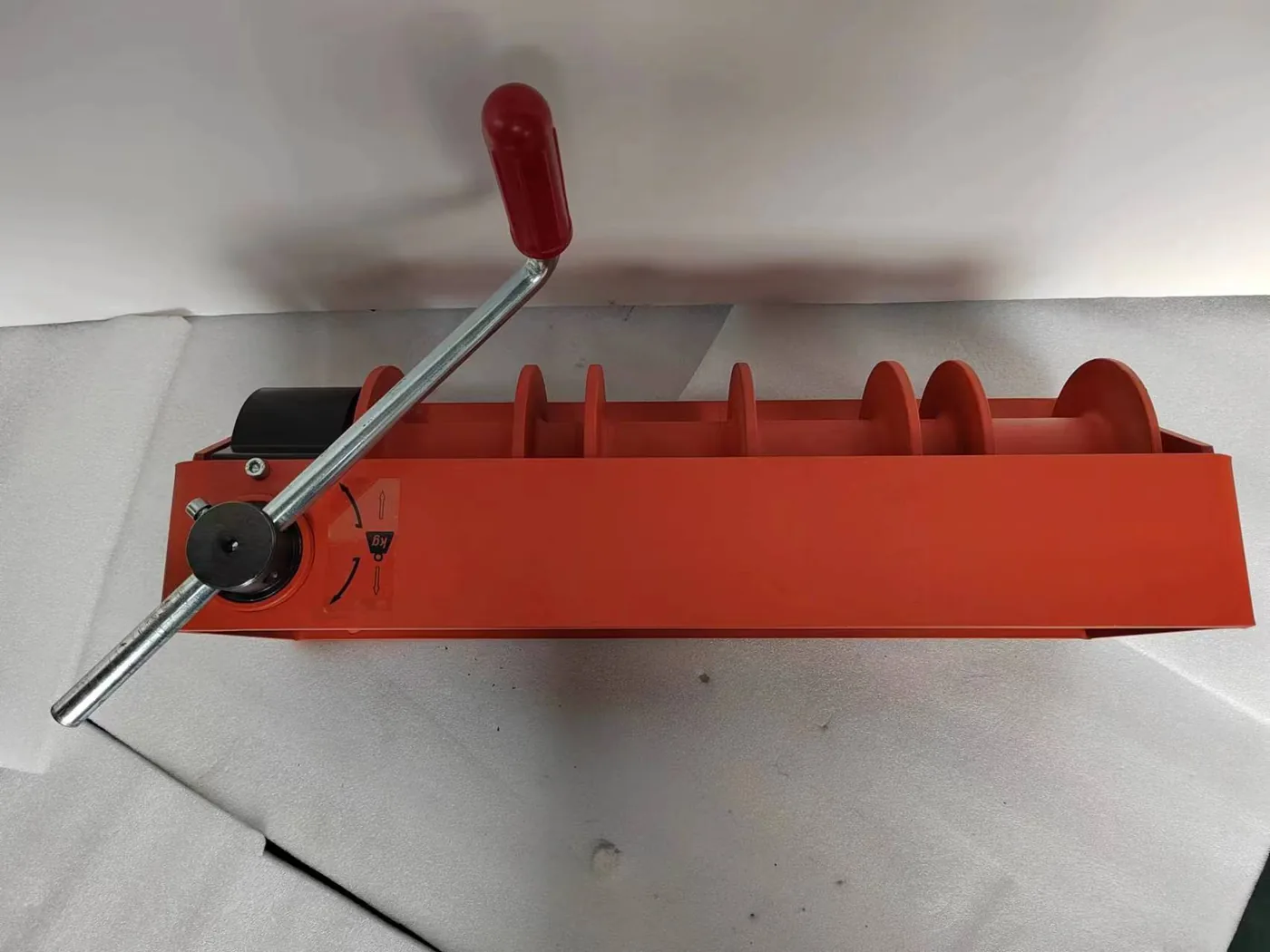

- Ergonomic two-hand crank handle for smooth winding
- No power supply required — works anywhere, even during outages
Related Products
Single-Point Winch
SP Series Winch
FLEXPILE Disc Winch Series
The BRD Light-Duty Manual Hand Winch covers lifting tasks from 100 to 300 kg where a full motorized hoist would be oversized. It is a compact, power-free batten winch for small theaters, school auditoriums, TV studios, exhibition halls and training rigs.

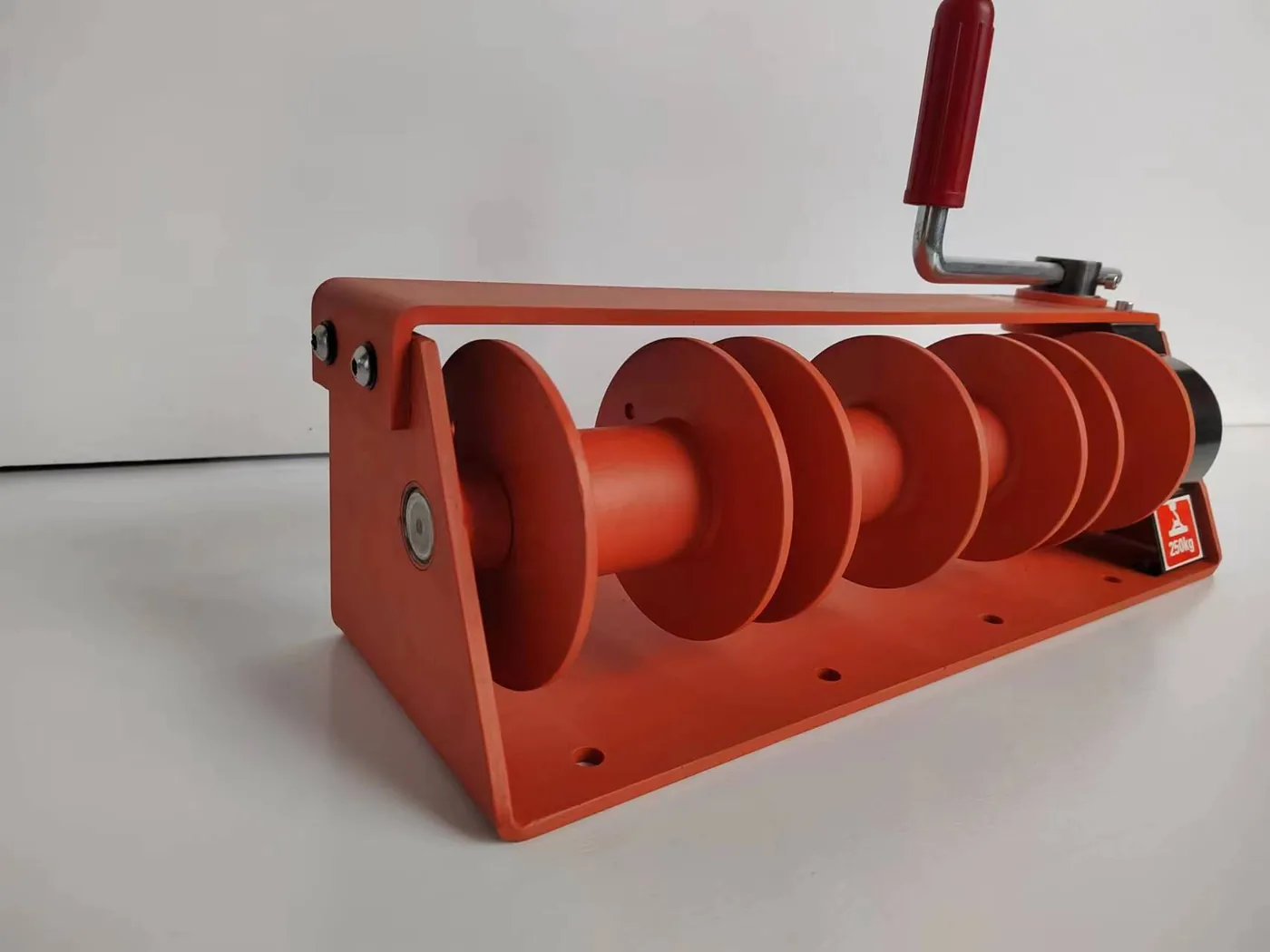

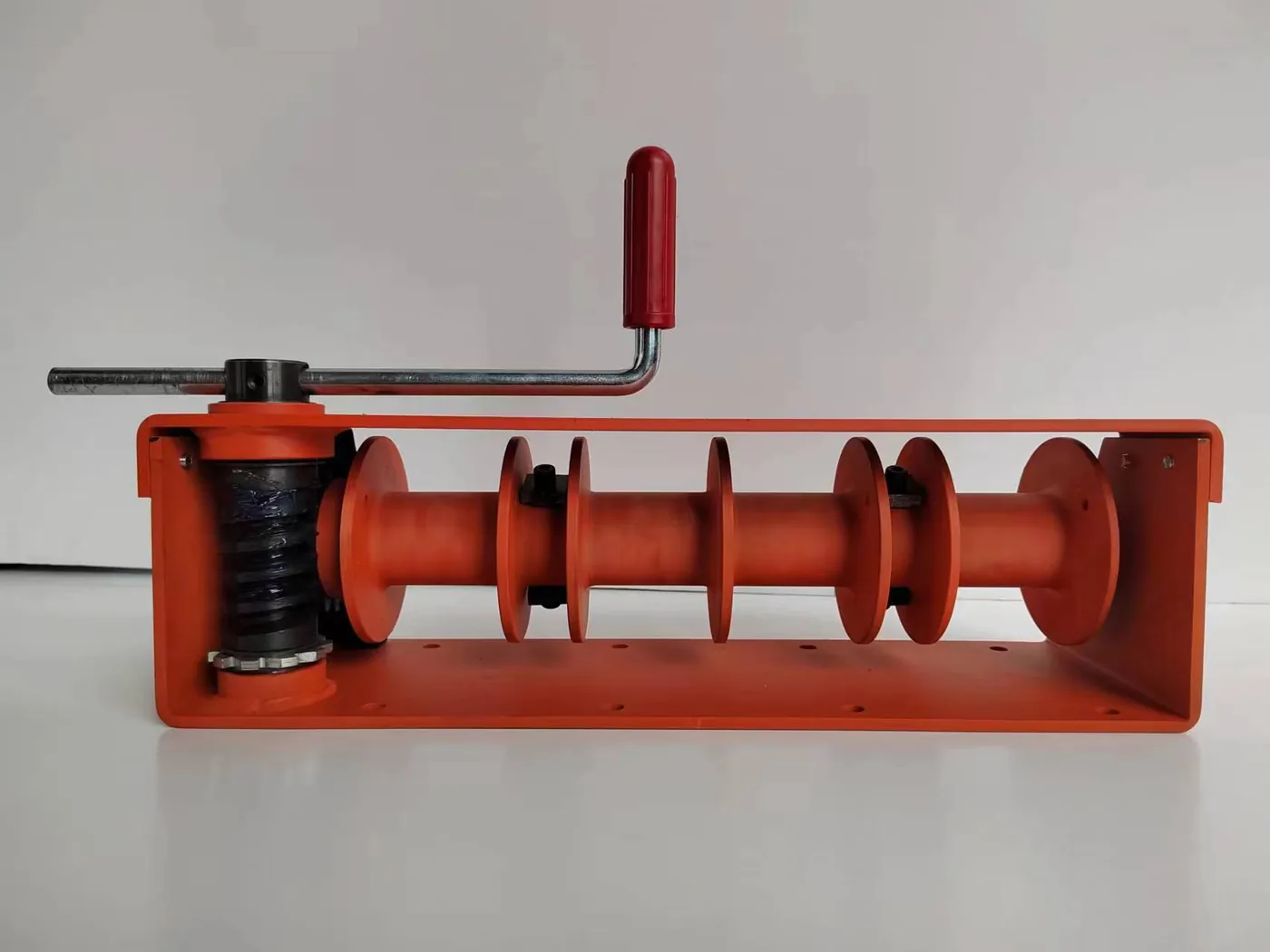

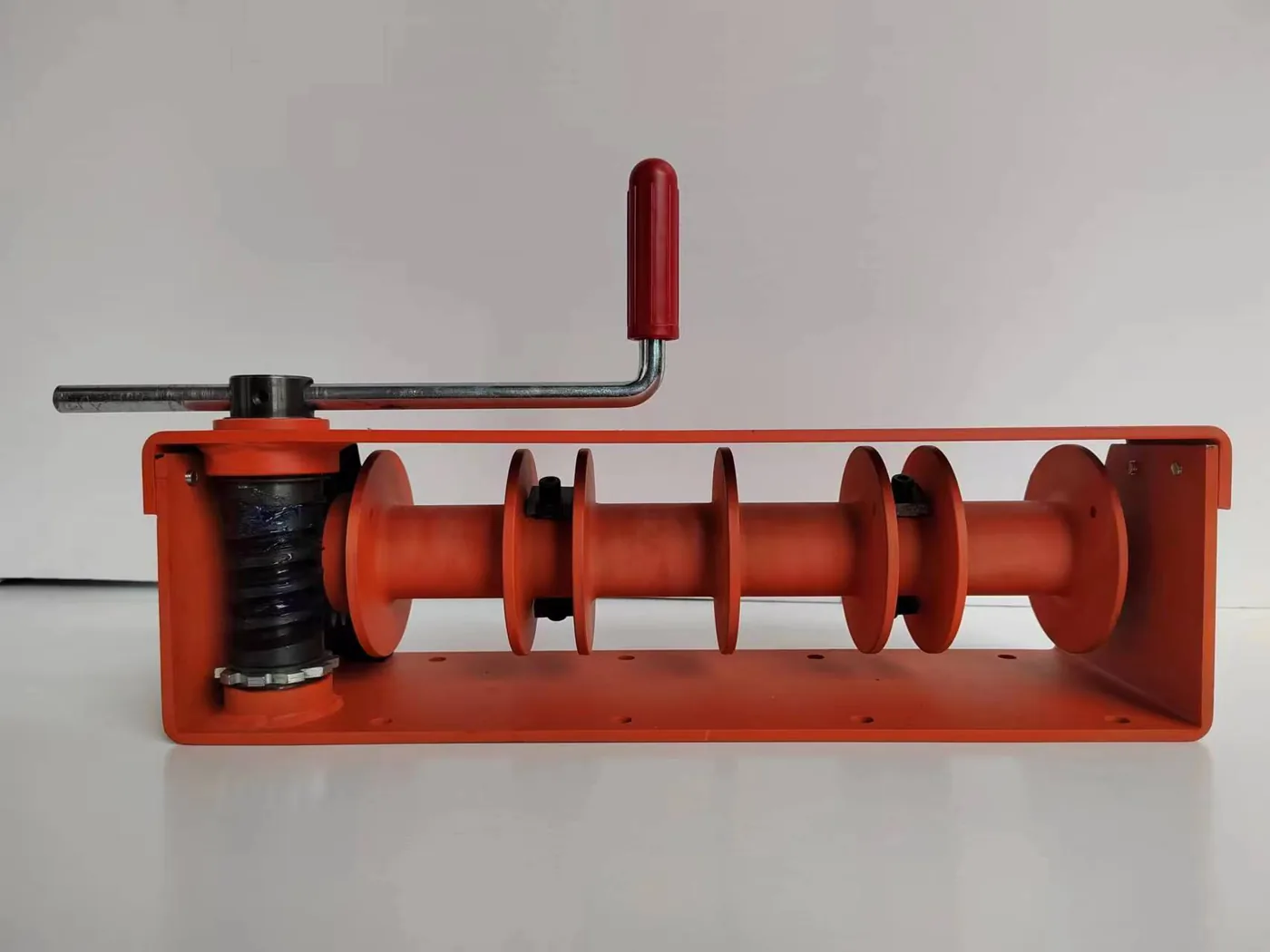

Open Frame, Divided Drum
Unlike closed-housing winches, the open steel-plate frame puts the whole drum in view — rope condition, winding layers and mounting bolts can be inspected at a glance. The drum is divided into individual rope grooves, so each rope runs in its own channel: no crossing, no overlapping, no rope damage from layers biting into each other. This divided design makes it especially suitable for multi-rope lifting points.

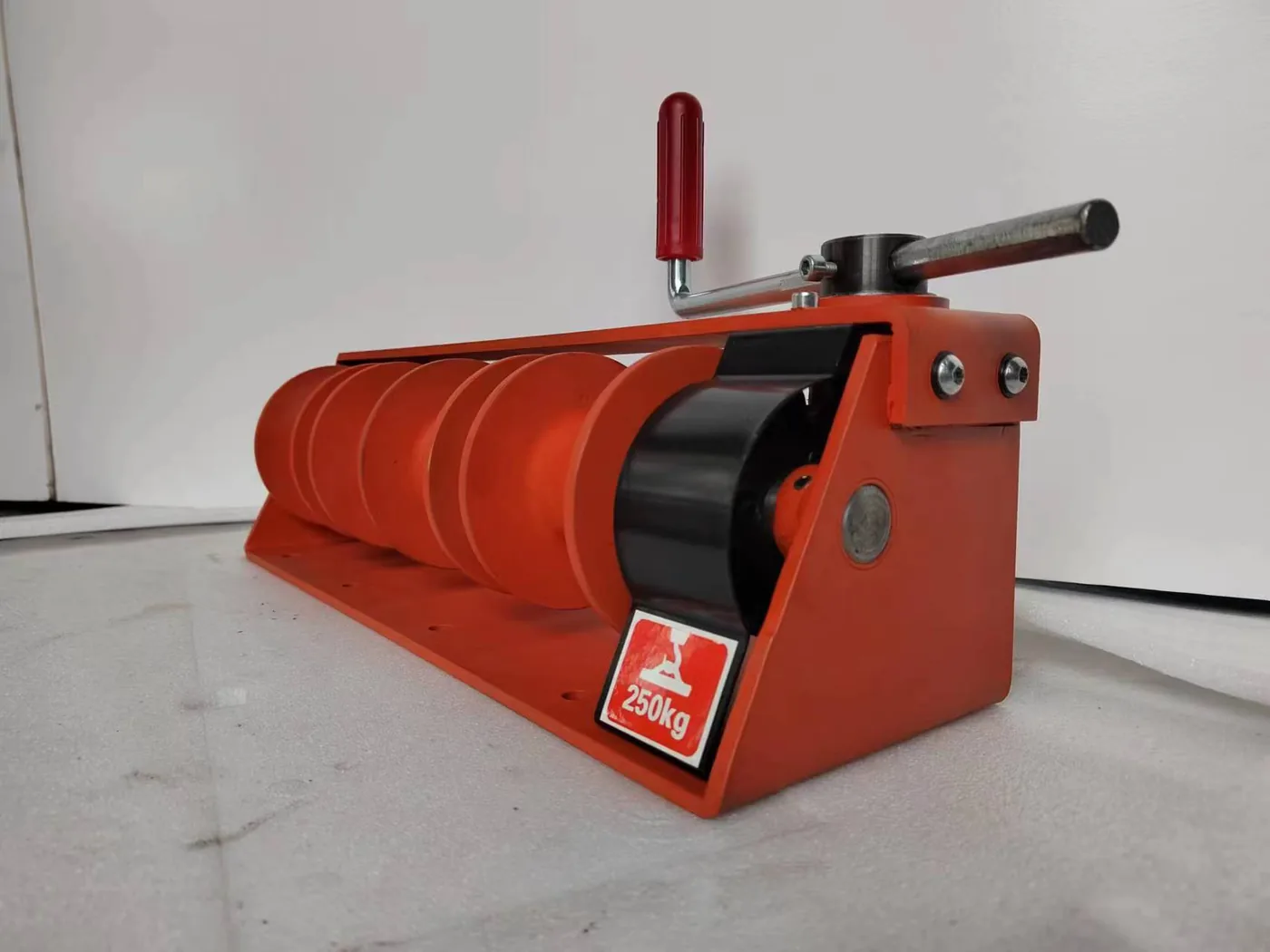

Spring-Loaded Rope Presser
A spring-loaded presser keeps the wire rope firmly seated in the drum groove during winding and lowering. Even with sudden slack — for example when the load is set down — the rope stays in position instead of jumping out of the groove. This small detail is what separates a reliable stage winch from a hardware-store winch.
Built for Real Stage Work
The winch is entirely hand-operated: no cabling, no control cabinet, no electrical certification. The ergonomic crank handle gives smooth, controlled winding, and the open frame mounts directly to grid structures, walls or support steel. Powder-coated finish resists the corrosion and wear typical of backstage environments.
Typical Applications
One to four point lifting for curtain battens, lighting bars, scenery pieces and teaching rigs in schools, rehearsal halls, studios and exhibition venues. Combined with BRD pulleys, wire rope and rigging components, it forms a complete manual lifting system at a fraction of the cost of motorized equipment.
BRD Technology manufactures stage machinery in China with 500+ installations across 14 countries and regions. The light-duty manual hand winch is supplied individually or as part of complete rigging packages, with mounting hardware and installation guidance included.
A light duty hand winch for 100-300 kg lifting tasks where a full stage winch is not justified. Frequently bought as a manual stage winch for small theatres, schools and rehearsal rooms, it can be supplied individually or as part of a complete stage machinery package.
