Lighting Batten
Lighting batten assembly for stage lighting suspension: double steel pipes connected by bolted clamps with a slotted steel cable tray mounted between them. Fixtures hang on the pipes while power and signal lines run neatly in the tray. Matte black powder-coated finish. Suitable for theaters, studios, school halls and multipurpose venues.
Technical Specifications
Key Features
- Double-pipe batten carries fixtures and cabling separately
- Bolted pipe clamps — strong connection, easy assembly and adjustment
- Slotted steel cable tray keeps power and DMX lines organized
- Matte black finish blends into the ceiling and reduces glare
- Modular design — batten length and tray position configurable
Related Products
Standard Groove Pulley
Cable Rewinder Box
Truss Batten

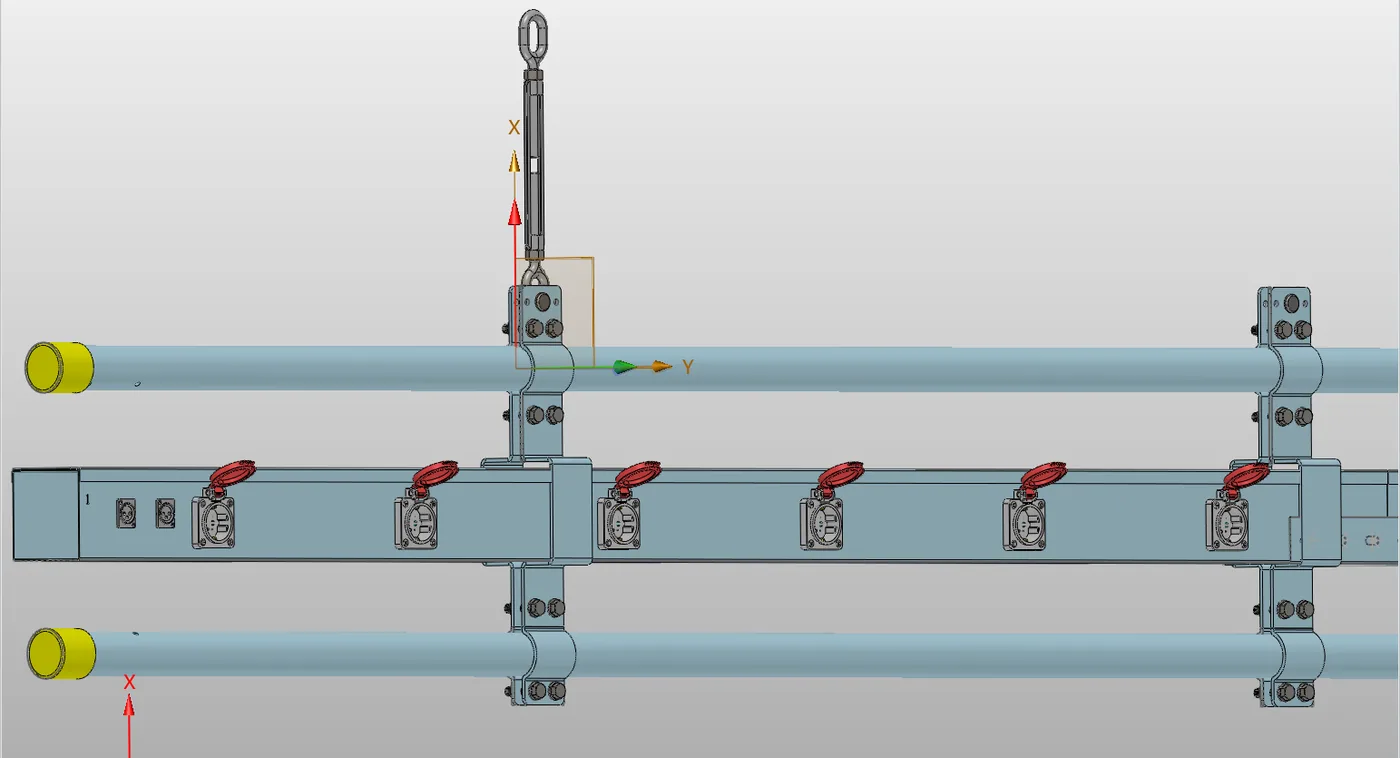

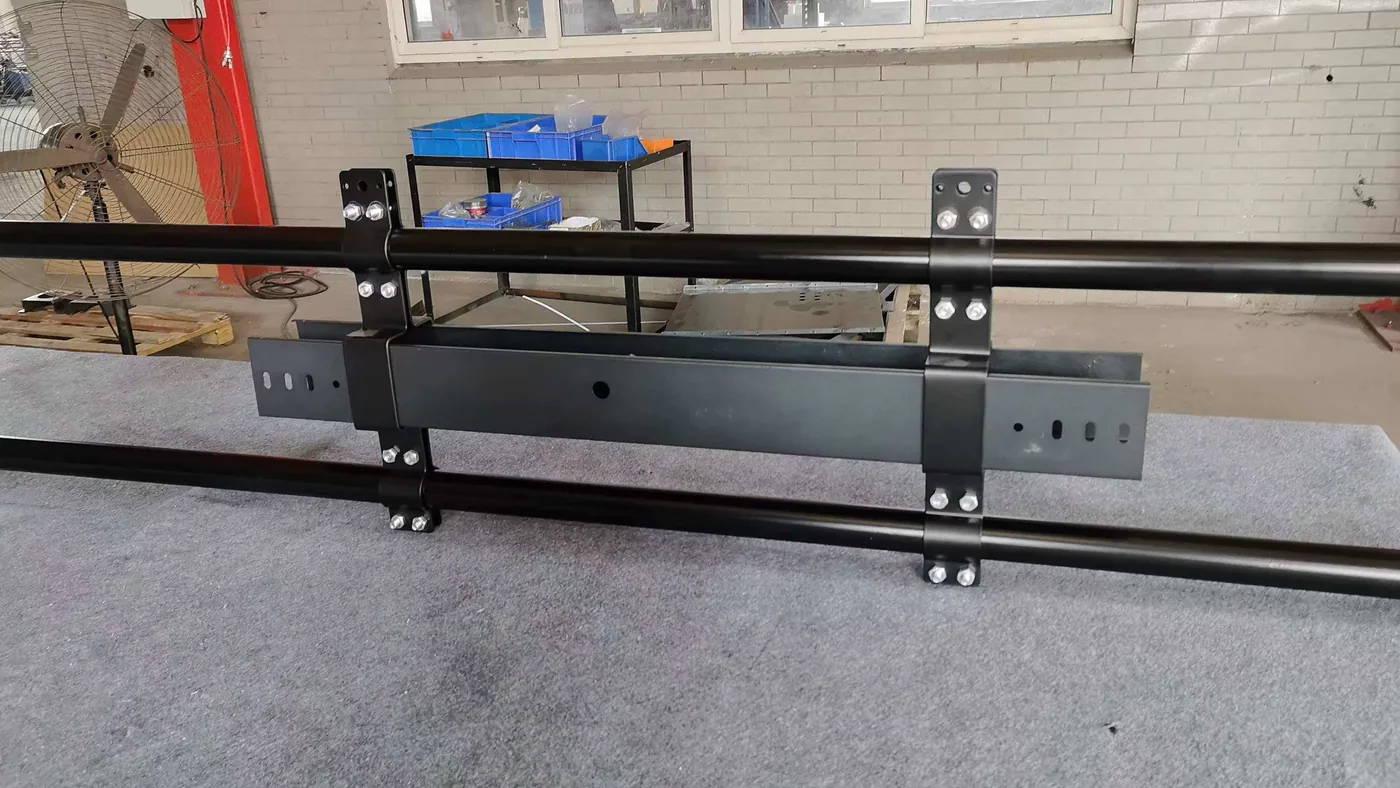

The BRD Lighting Batten is a dedicated suspension structure for stage lighting: two parallel steel pipes joined by bolted pipe clamps, with a slotted steel cable tray carried between them. It gives every lighting position a clean, load-bearing frame — fixtures on the pipes, cabling in the tray.
Designed Around Real Rigging Practice
On a working lighting bar, the two biggest problems are fixture loading and cable management. This batten solves both at once. The double-pipe structure spreads fixture weight across two suspension points, while the integrated slotted channel keeps power cables and DMX lines off the pipes — no zip-tie jungle, no cables snagging on clamps, and service access to every fixture stays clear.
Bolted Clamps, Flexible Layout
Every connection is a bolted pipe clamp: strong, vibration-proof, and adjustable. Clamp positions can be moved to match fixture spacing, the cable tray can be mounted at the height and offset the venue needs, and batten length is configurable to the proscenium or studio grid. Because the whole assembly is modular, it can be extended, reconfigured or relocated as the venue evolves.
Finish That Disappears Into the Ceiling
The entire assembly — pipes, clamps and tray — is finished in matte black powder coating. On a dark grid it visually disappears, keeps stray light reflection low, and resists the scratches and corrosion of daily rigging work.
Where It Fits
Theaters, TV studios, school auditoriums, rehearsal rooms and multipurpose halls: anywhere lighting fixtures need a permanent, tidy suspension line. It pairs naturally with BRD hoists and rigging components — pipe clamps, wire rope, pulleys and manual winches — to form a complete lighting rigging system.
BRD Technology manufactures stage machinery and rigging components in China with 500+ installations across 14 countries and regions, supplying battens individually or as part of complete venue packages.
Frequently searched as a lighting batten, lighting bar, stage lamp stand or lifting lamp bracket, this batten is the suspension structure behind every lighting position. Two parallel tubes, cable trays and outlets are arranged to the lighting designer's plot, and the batten can be flown on any of our stage hoists.
