Custom Lighting Batten System

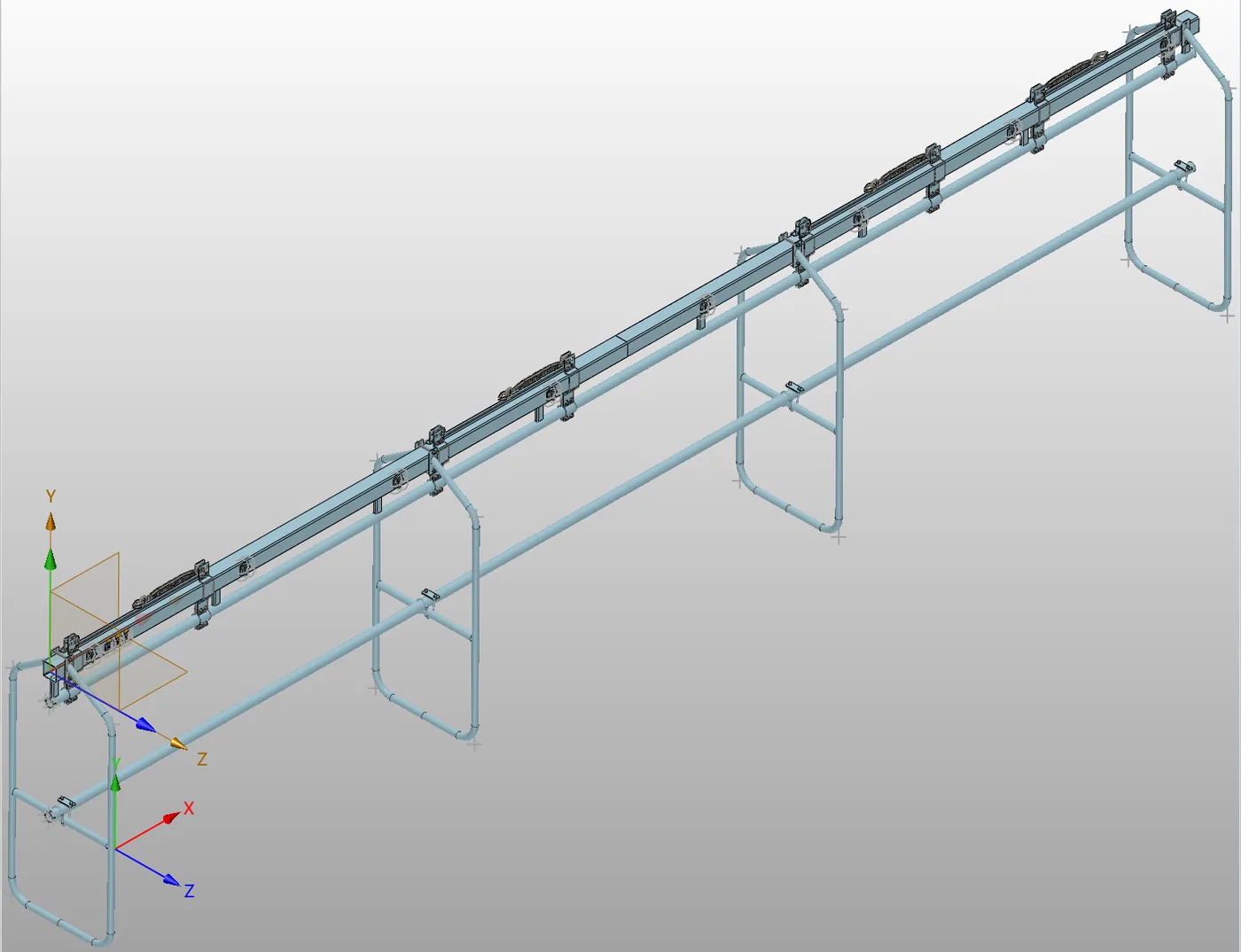

A custom-built electric lighting batten system: a track rail carries sliding hanger frames that support the steel pipe battens, a perforated steel feed trough manages the wiring loom, and sockets distributed along the batten let fixtures plug in directly. Lengths, outlet counts and suspension layouts are manufactured to project drawings.
Technical Specifications
Key Features
- Built to project drawings — length, outlet count and hanger layout are all configurable

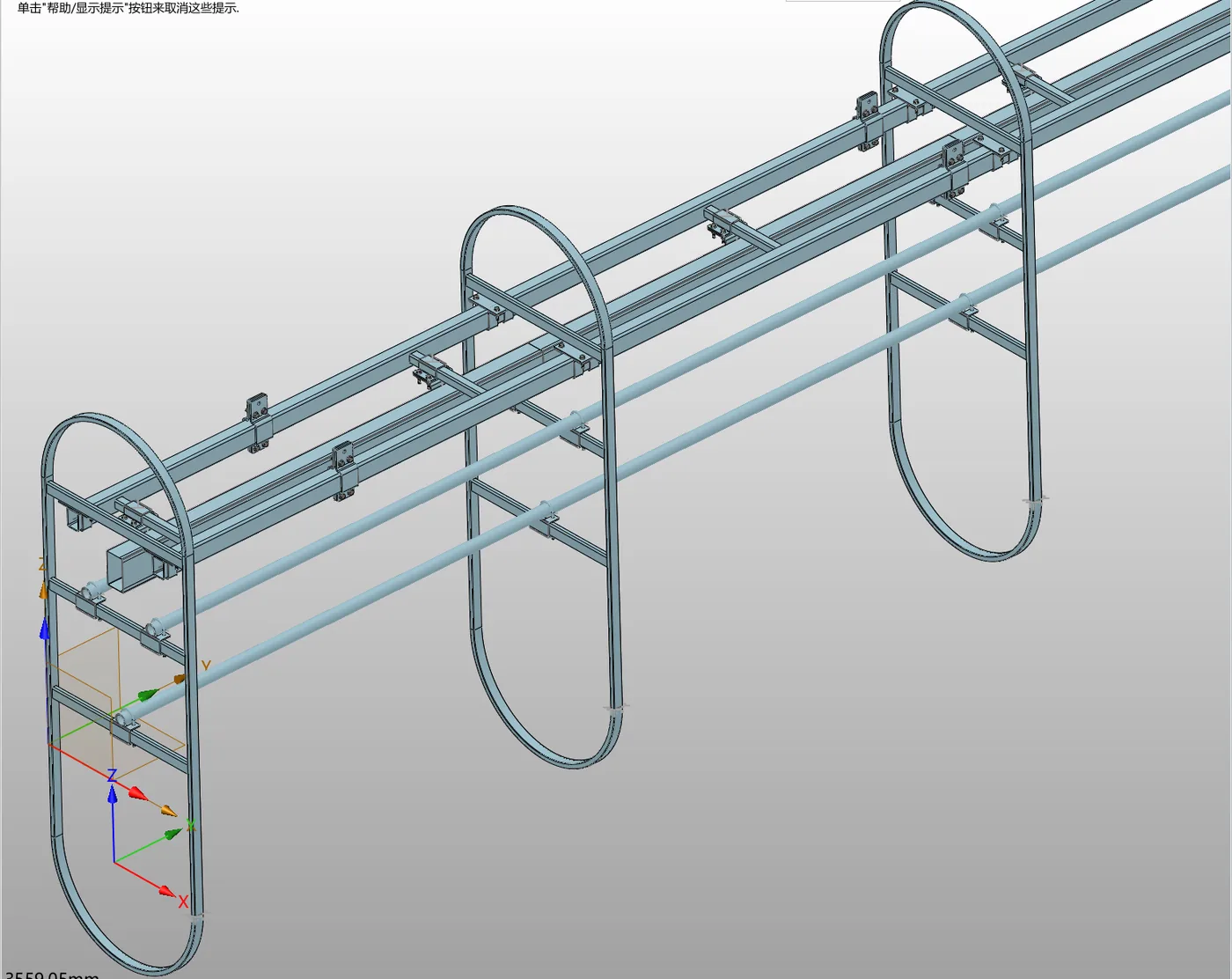

- Track rail with sliding hanger frames lets suspension points move to match any ceiling grid

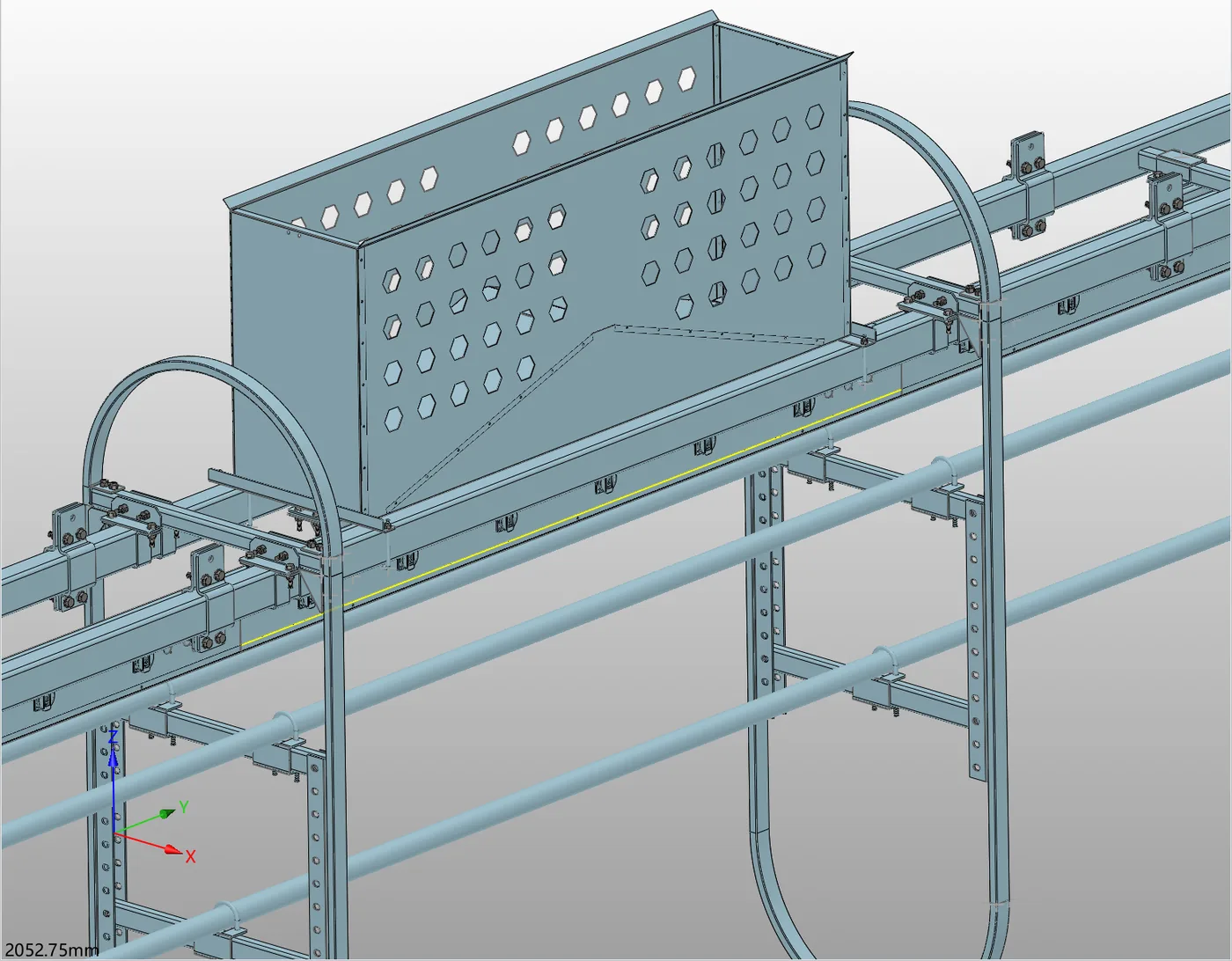

- Perforated steel feed trough carries and cools the wiring loom
- Sockets distributed along the batten — fixtures plug in directly, no loose cables

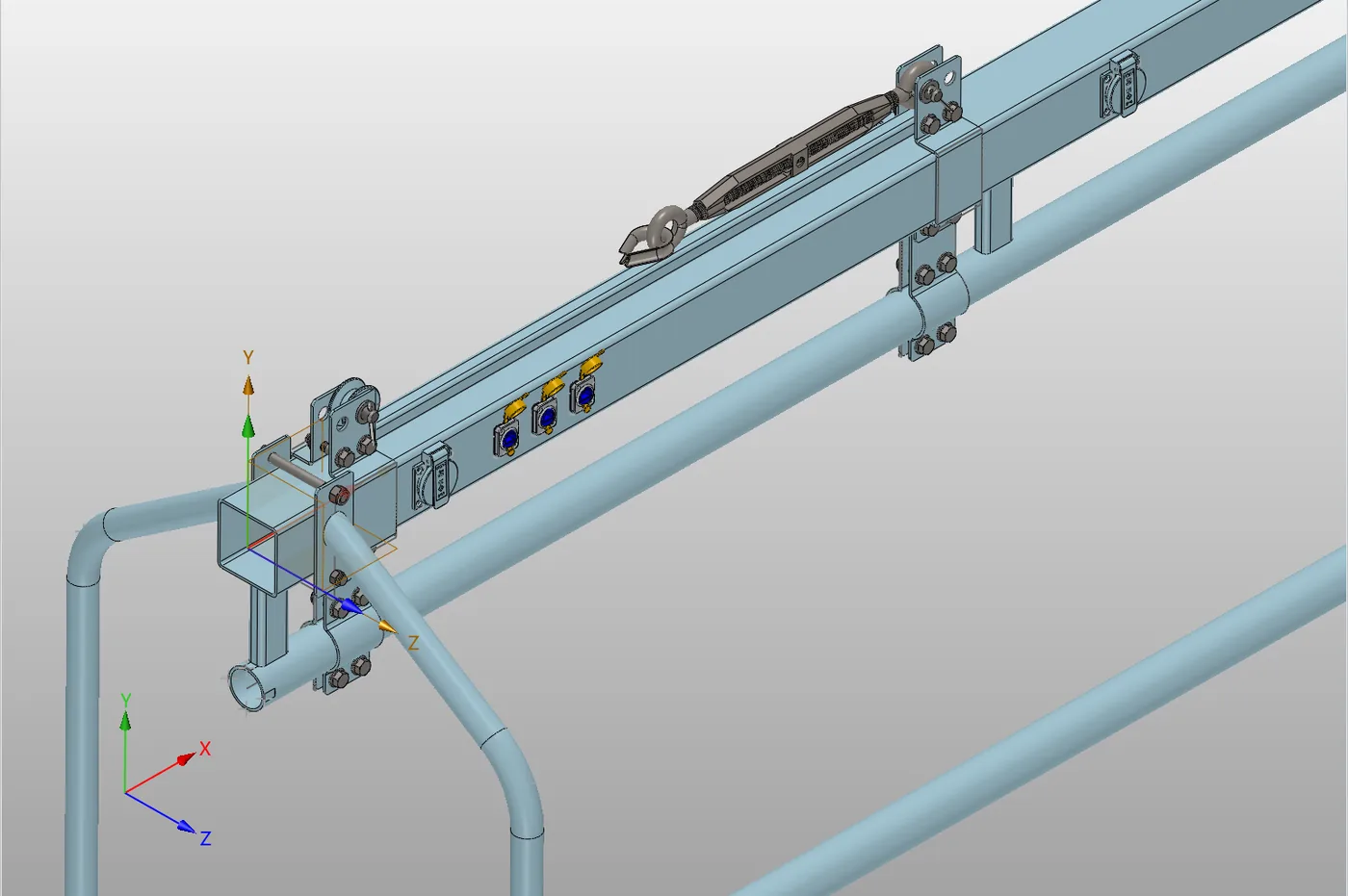

- Turnbuckle suspension points for fine leveling after installation
Related Products
Standard Groove Pulley
Cable Rewinder Box
Lighting Batten
The BRD Custom Lighting Batten System is a built-to-order electric batten — in US theatre terminology a custom "electric", in UK venues often specified as a custom lighting bar or internally wired bar (IWB). Instead of a standard pipe with cable taped on, we manufacture the complete suspension assembly to your drawings.
What "Custom" Actually Covers
Track length and the layout of sliding hanger frames; the number and position of power sockets along the batten; the size and perforation pattern of the steel feed trough that carries the wiring; suspension point spacing with turnbuckle connectors for final leveling. Every element is manufactured to the venue's ceiling grid and lighting plot, not adapted to it.
How It Goes Together

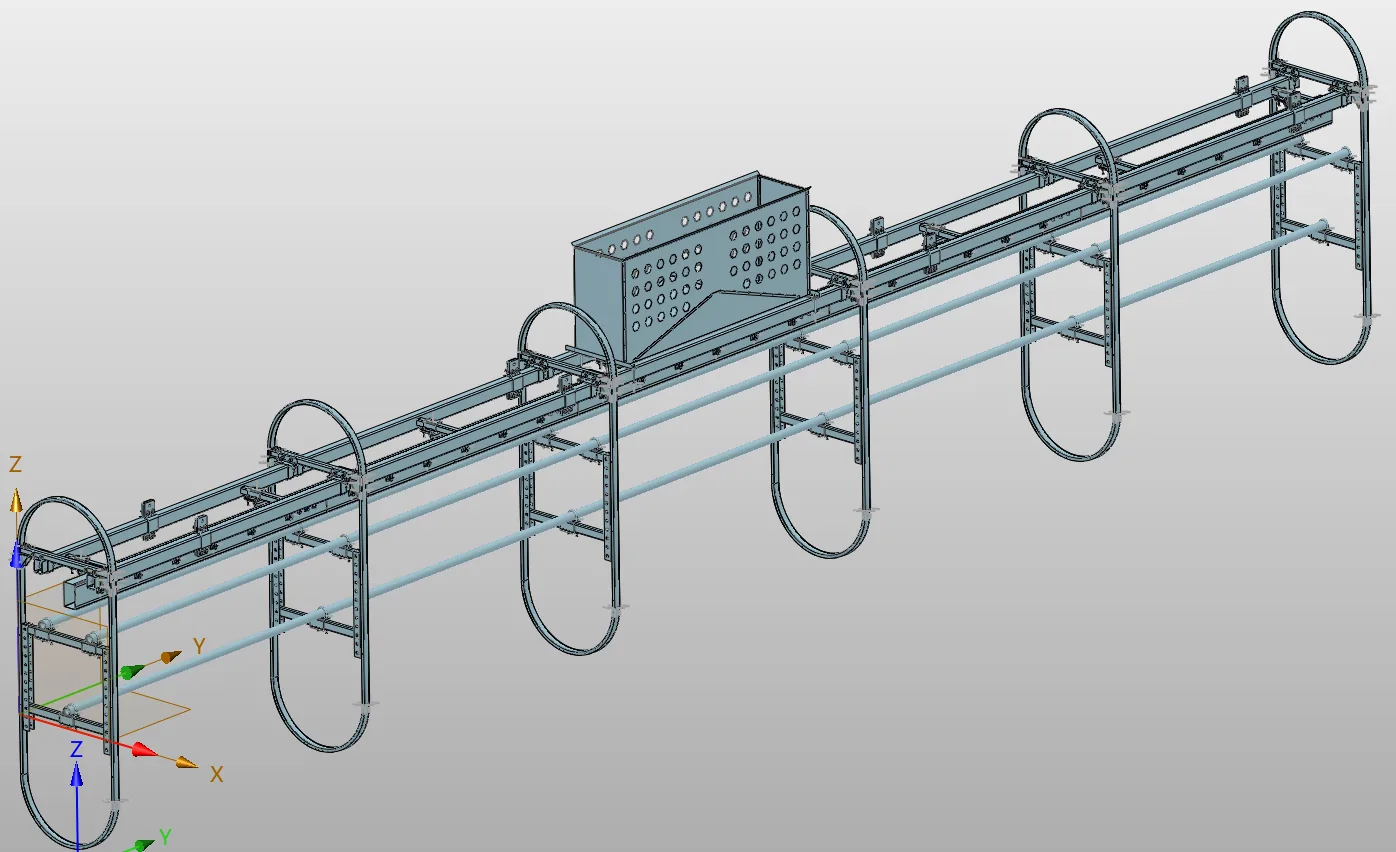

The track rail mounts to the building structure through the sliding hanger frames, so suspension points can be repositioned without re-drilling the structure. The pipe battens carry sockets at set intervals, and the perforated feed trough above the battens houses and ventilates the wiring loom. Turnbuckles at each suspension point level the whole assembly after installation.
Where It Fits
Theatres, television studios, school halls and concert venues that need an electric batten matched to a specific lighting plot. Pairs with our manual winches, motorized hoists and batten clamps in complete rigging packages.
BRD Technology manufactures custom stage lighting battens in China with 500+ installations across 14 countries and regions, supplying complete dead-hung and flown lighting bar systems built to project specifications.
Requested as a custom lighting batten, electric batten or internally wired bar (IWB), this system is built to the venue's lighting plot with pre-wired outlets down the full length. It pairs with our lighting batten and stage hoists so the whole lighting position arrives ready to plug in.
