Drive Control Cabinet

The BRD drive control cabinet is the power and control heart of a stage machinery system: one VFD per axis, networked back to the stage control console, with complete main-circuit and motor-protection wiring. Axis count, drive sizing and cabinet layout are engineered to the venue's machine list and factory-tested before shipment.

Technical Specifications

TypeDrive / control cabinet for stage machinery
DrivesVFDs mounted per axis, one drive per hoist/motor
NetworkVFDs networked to the control console
Circuit LevelMain breakers, motor circuits, terminal strips
ConfigurationAxis count and cabinet size built to project

Key Features

  • One VFD per axis — every hoist, lift and turntable motor gets its own drive
  • Drives networked to the control console for centralized position control
  • Complete circuit level: main breakers, motor protection and orderly terminal strips
  • Cabinet layout and axis count engineered to the venue's machine list
  • Factory-wired and tested before shipment, paired with our consoles and hoists
Send Inquiry

Related Products

Control Systems
Stage Machinery Control Console

Stage Machinery Control Console

Screen Options: 15" or 19" Touch ScreenControl Config: Standard / Single Joystick / Dual JoystickSafety Features: Password Mgmt, Limit Protection, Phase Sequence Protection
Control Systems
Stage Control Console

Stage Control Console

Type: Console for stage machinery / rigging controlDisplay: Industrial touchscreen, graphical operation interfaceControllers: Dual proportional joysticks

The BRD Drive Control Cabinet houses the variable frequency drives and circuit level of a complete stage rigging control system — the cabinet between the control console and the motors that fly battens, run hoists and move stage lifts.

One Drive per Axis

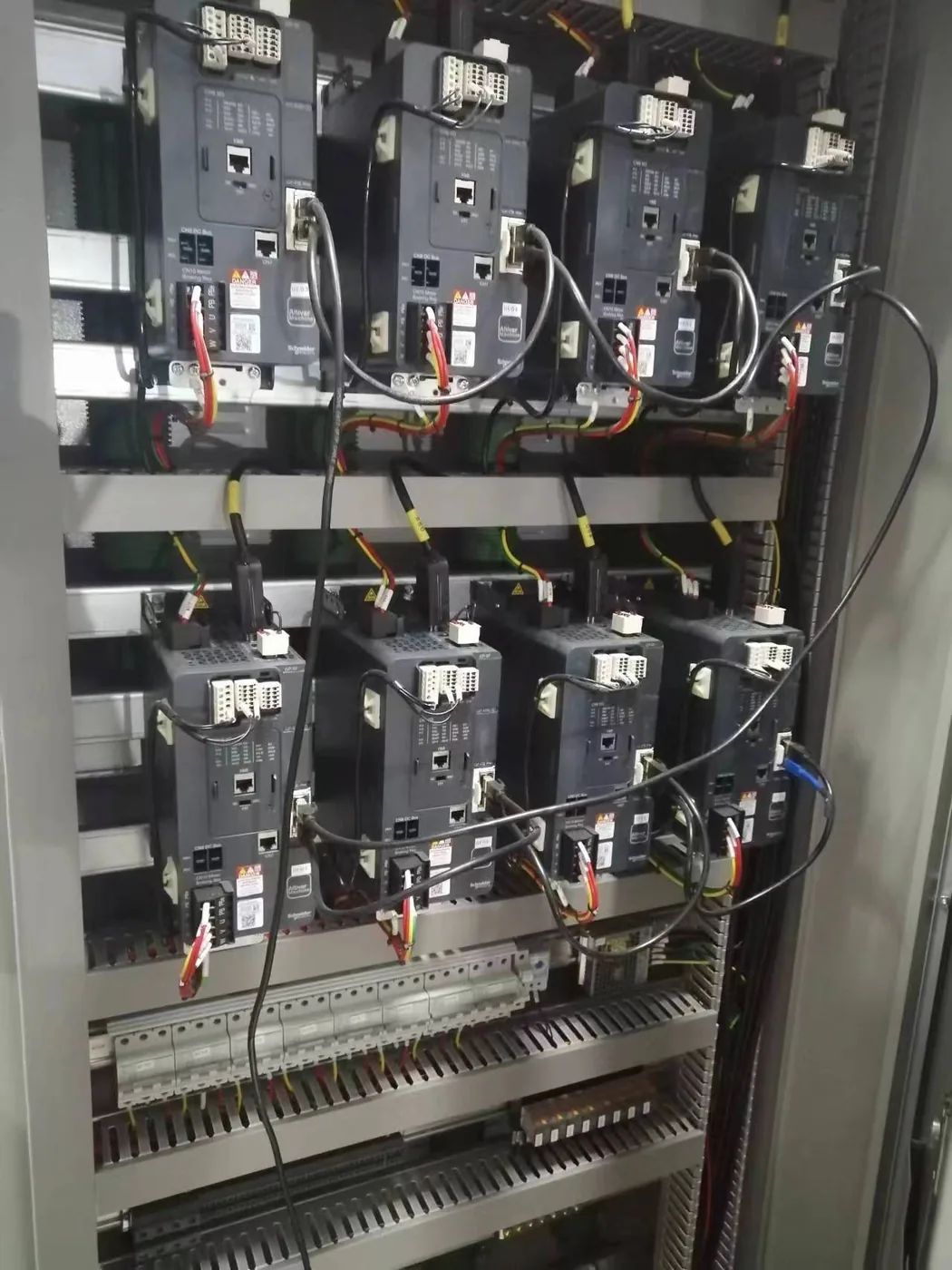

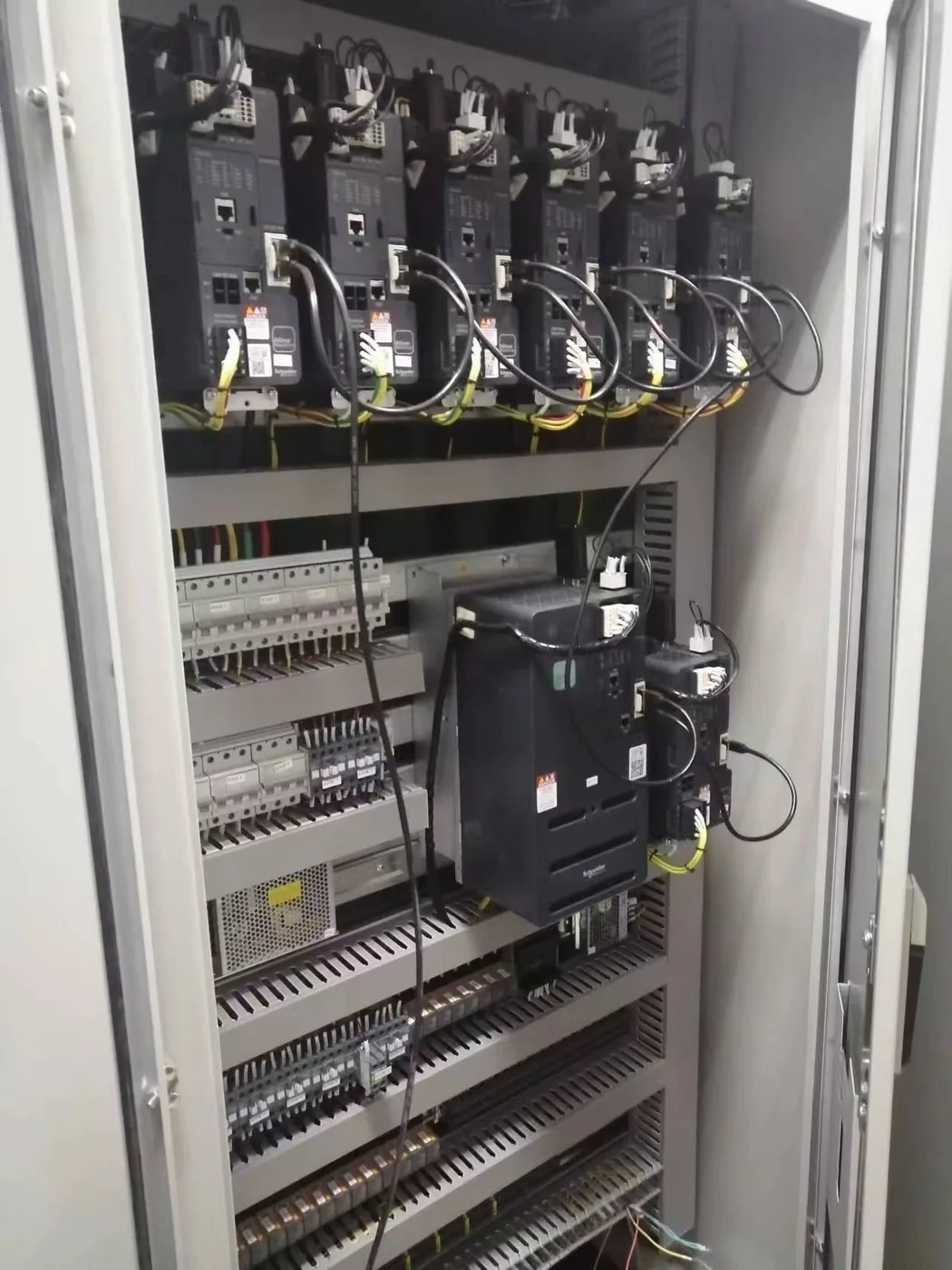

Every hoist, lift and turntable in the machine list gets its own VFD, mounted and wired in the cabinet. The drives network back to the stage control console, so positions, groups and limits are managed centrally while each axis keeps its own protection and diagnostics.

Wiring You Can Audit

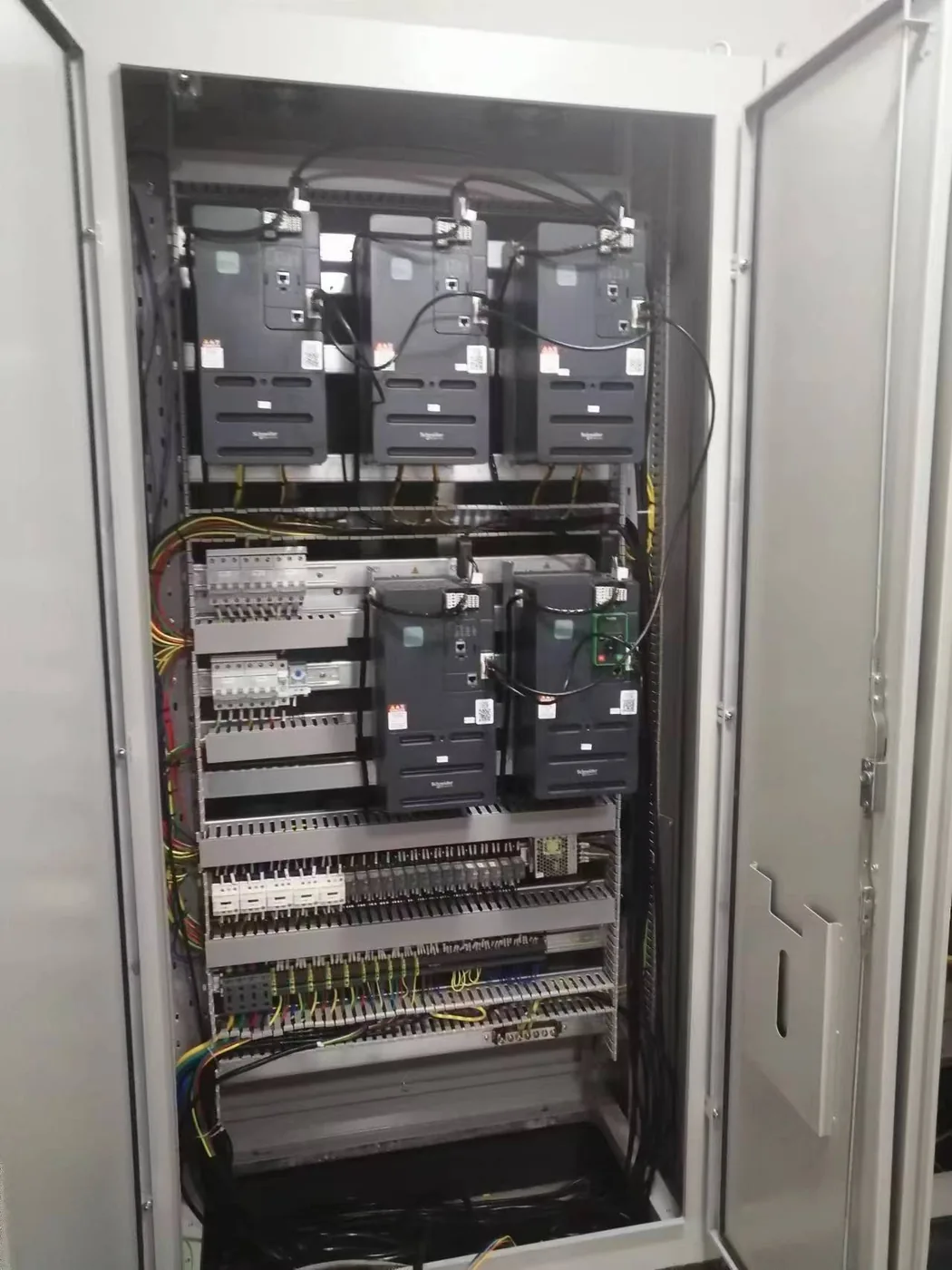

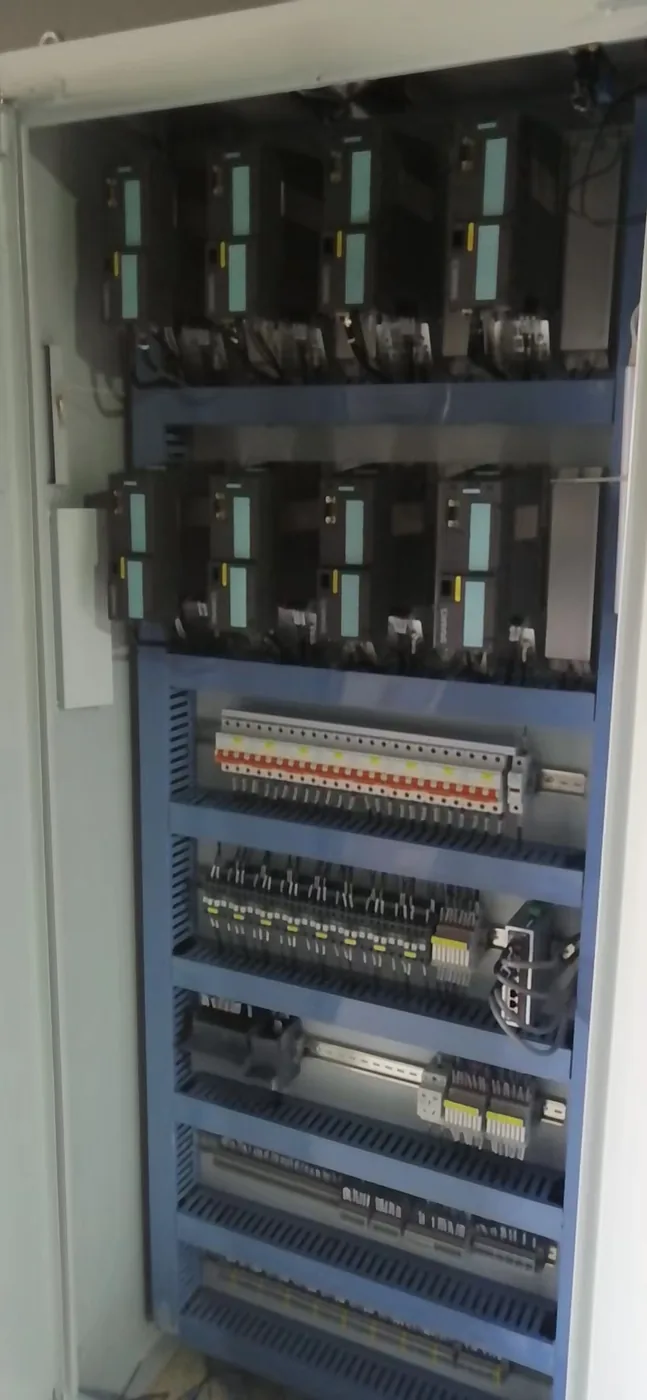

Inside the door: main breakers, motor-protection circuits and terminal strips laid out in orderly rows — the kind of cabinet an inspector and a service technician both like to open. Cabling from cabinet to machines follows the venue's containment, labelled point to point.
