Stage Control Console
The BRD stage control console is the operator station for our winches, hoists and batten systems: an industrial touchscreen with graphical console software, dual proportional joysticks, emergency stop and key-switched enable, and network ports that link to the drive and controller cabinets. Supplied with a floor stand for fixed installations or a flight case for touring rigs.
Technical Specifications
Key Features
- Industrial touchscreen runs the graphical console software — positions, groups and status at a glance
- Dual proportional joysticks for direct, speed-proportional manual control
- Emergency stop plus key-switch enable — two-step protection against unauthorized operation
- Network in/out ports on the rear panel link the console to the drive and controller cabinets
- Steel enclosure with cooling fan; floor stand for fixed venues, flight case for touring
Related Products
Stage Machinery Control Console
Drive Control Cabinet
The BRD Stage Control Console is the operator station of a complete stage rigging control system — the hoist controller console from which technicians run winches, motorsized hoists and batten sets in theatres, television studios and school halls.
One Console, the Whole Stage

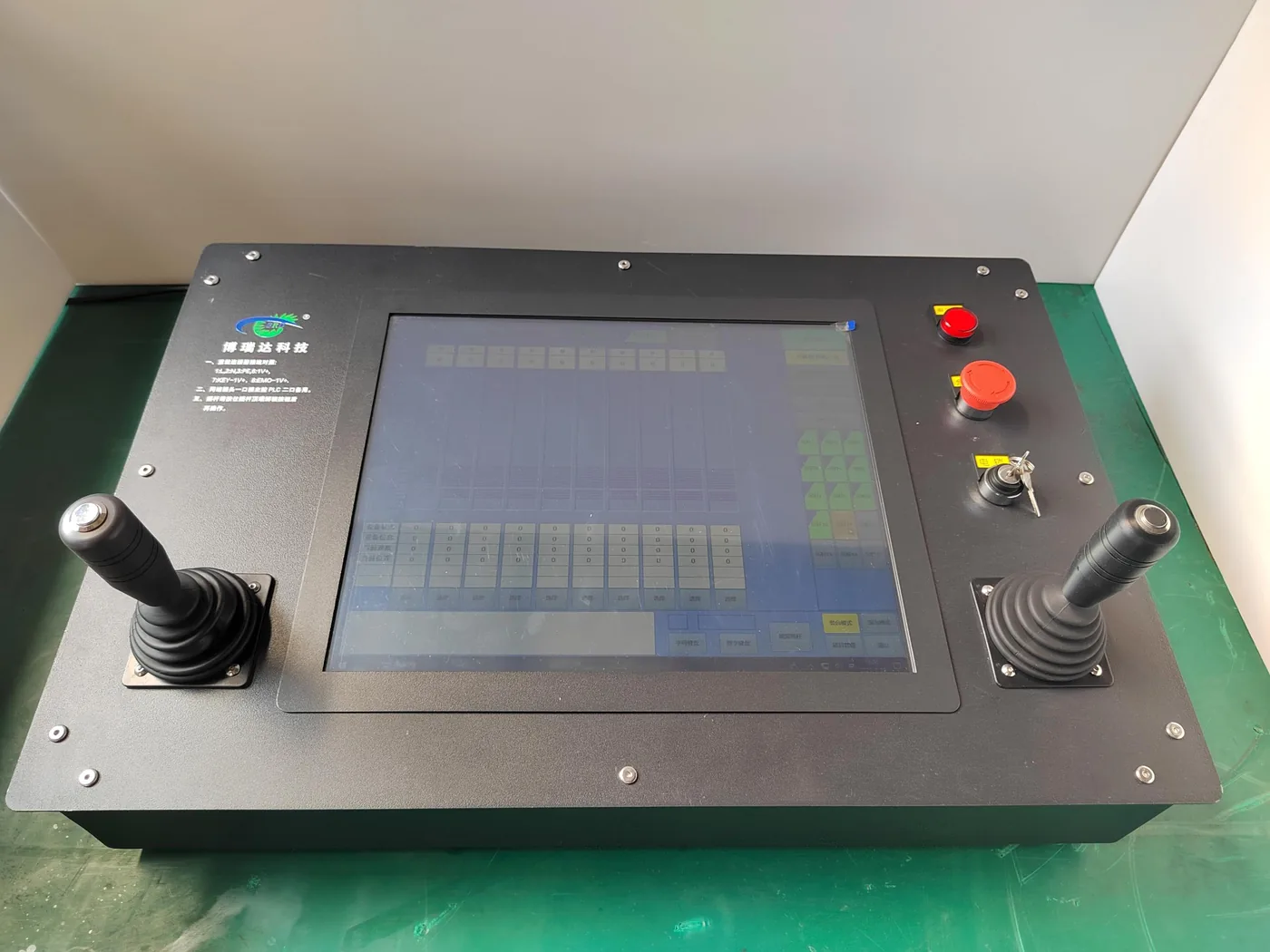

The industrial touchscreen runs graphical console software that shows every axis: position, group membership, limit status and faults. Operators select single units or groups, then move them with the dual proportional joysticks — speed follows hand movement, the way riggers expect from a manual pendant, with the overview a touchscreen adds.
Safety Designed In

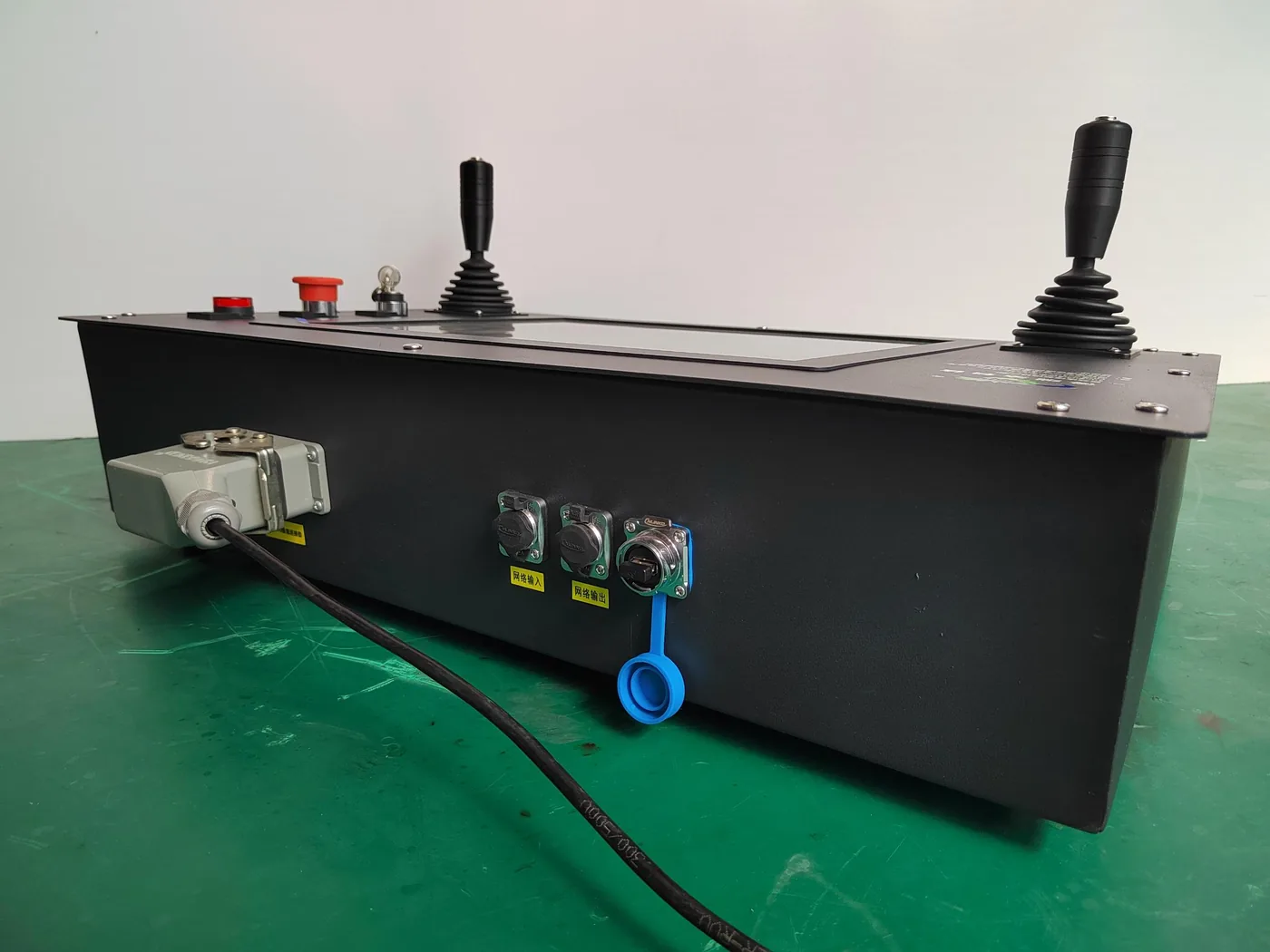

An emergency-stop circuit and a key-switched power enable sit on the console's top plate: power-up requires a key, and any fault condition is one palm strike away from a full stop. Network in/out ports on the rear panel connect the console to the drive and controller cabinets over standard industrial links.
Fixed or Touring

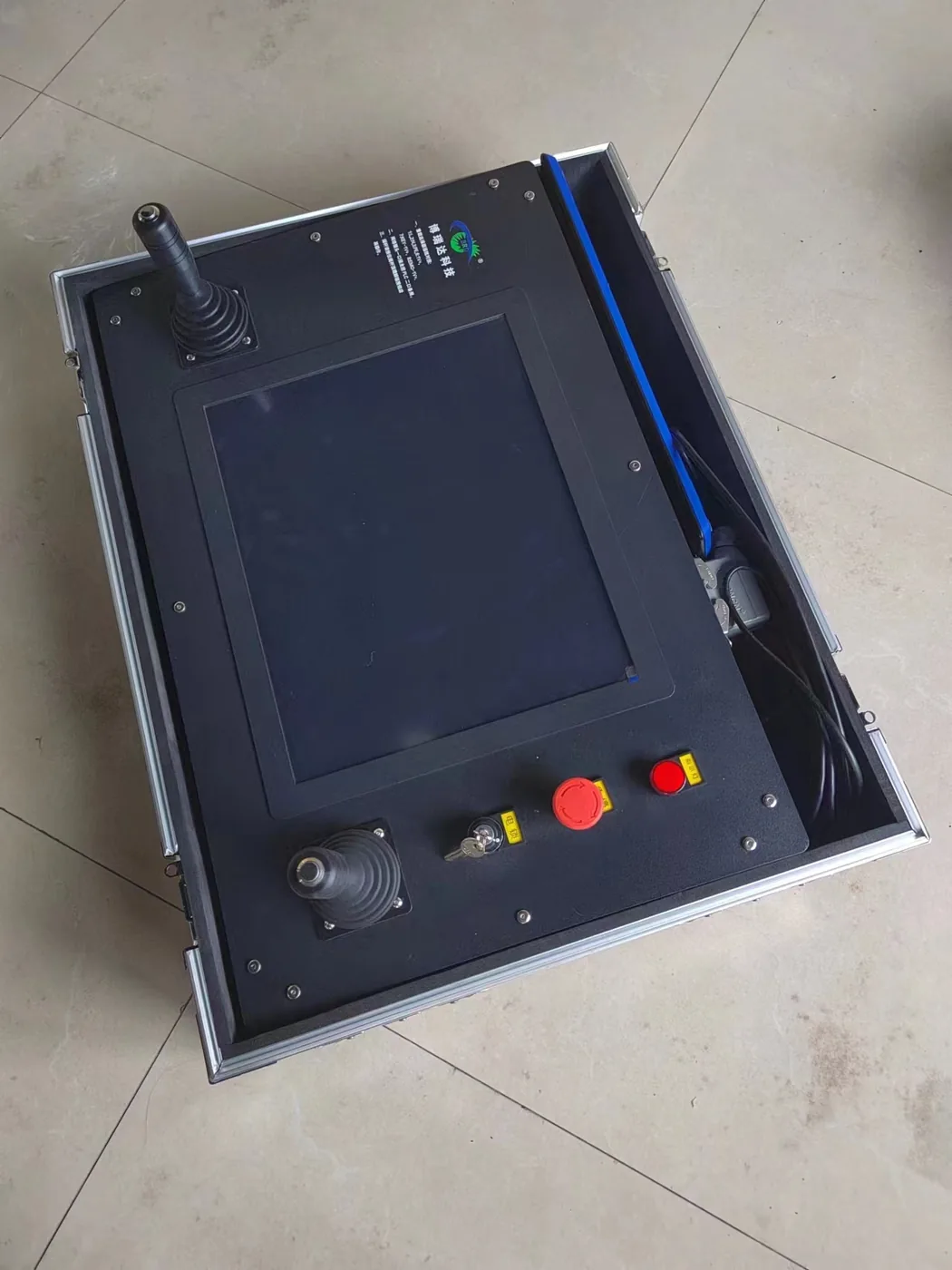

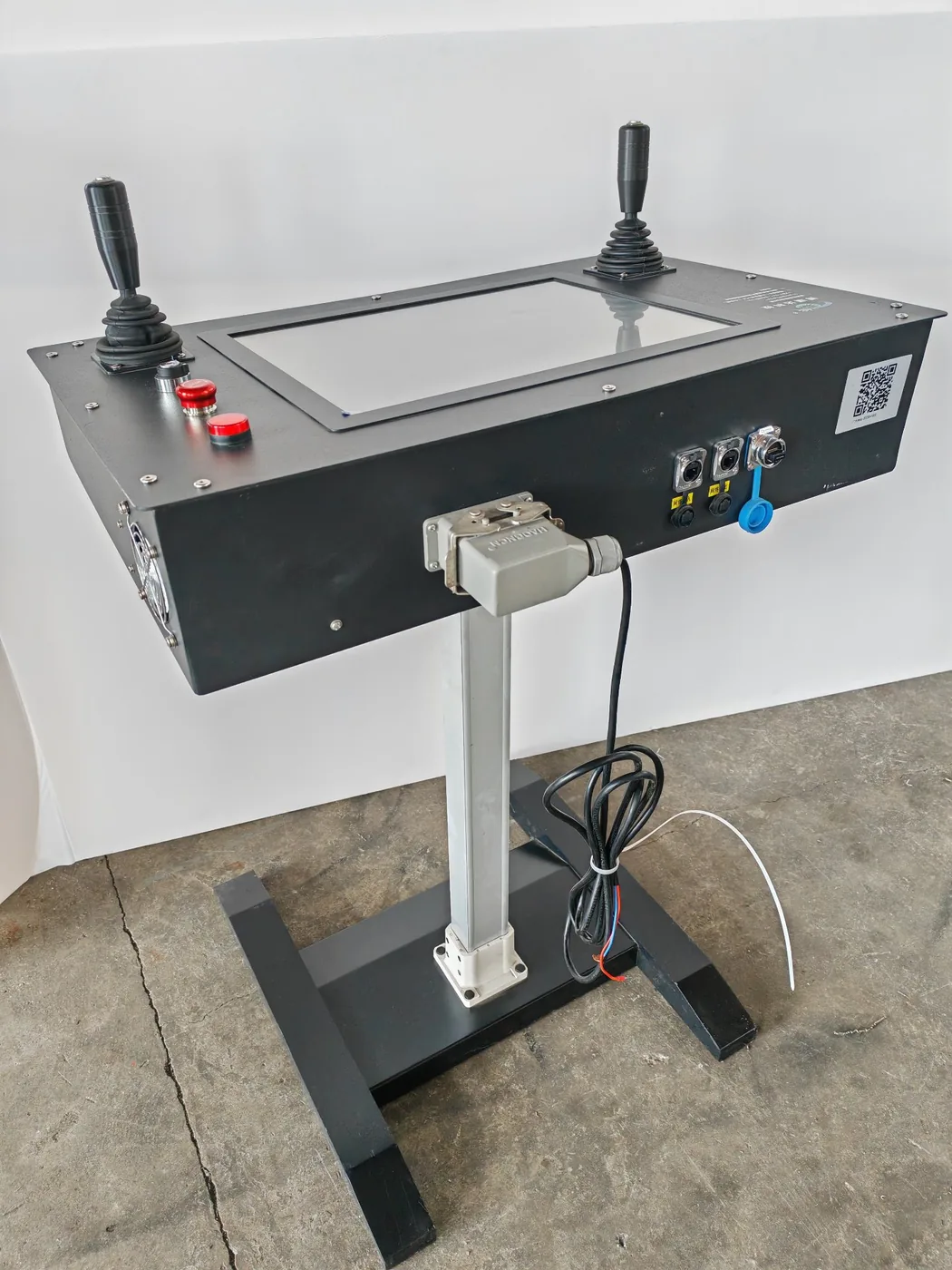

Fixed venues take the console on its floor stand, wired through the rear connectors. Touring rigs pack the same console into an optional flight case. Either way it pairs with BRD winches, hoists and control cabinets as one matched system.
BRD Technology manufactures stage machinery control systems in China with 500+ installations across 14 countries and regions, supplying consoles, cabinets and drives as complete rigging control packages.
The stage control console is the operator station of a stage machinery control system: it drives hoists, winch controllers, curtain machines and lifts from one panel. It is specified together with our drive control cabinet so a theatre receives one compatible control package rather than mixed components.
