Cable Rewinder Box

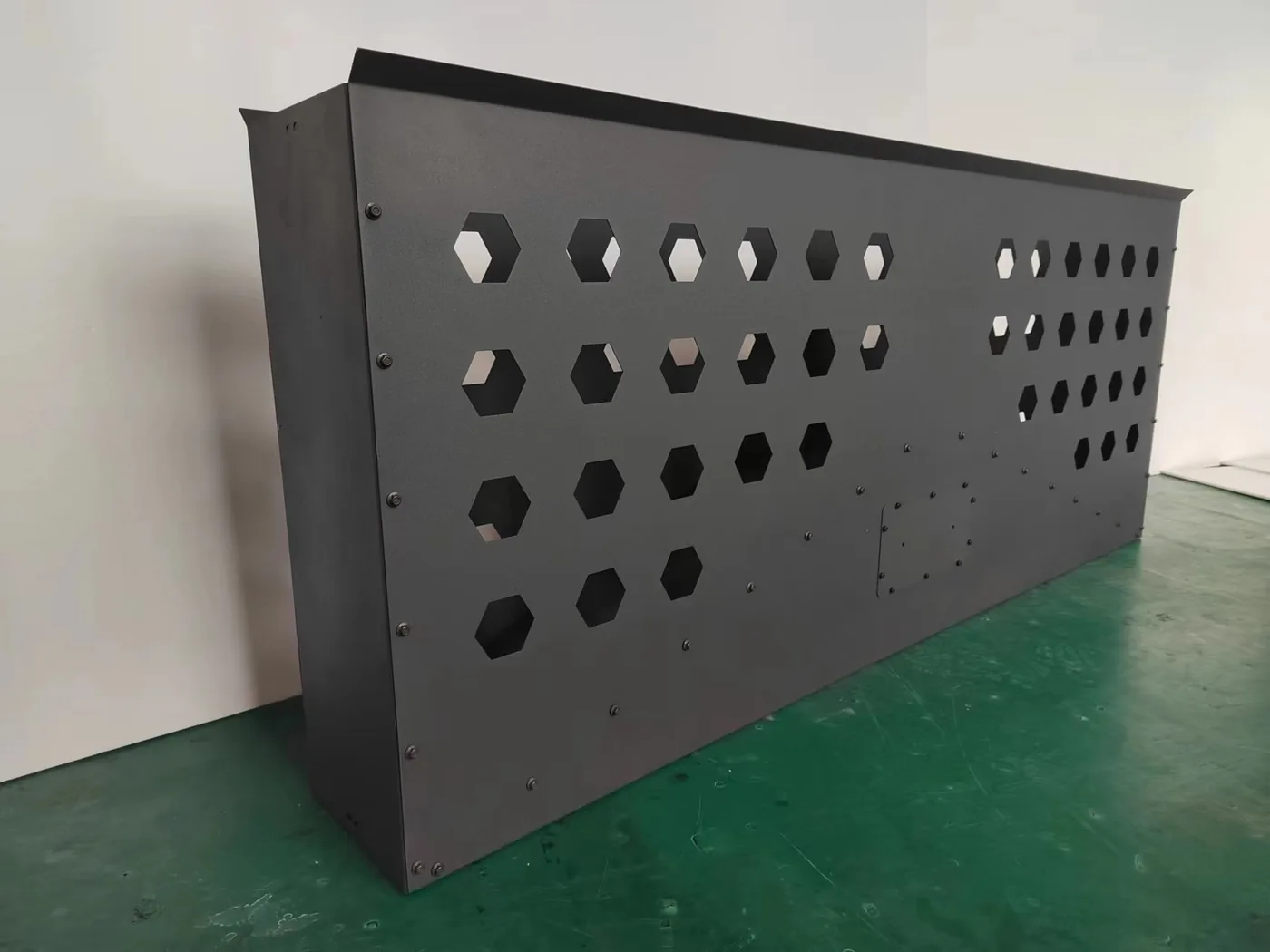

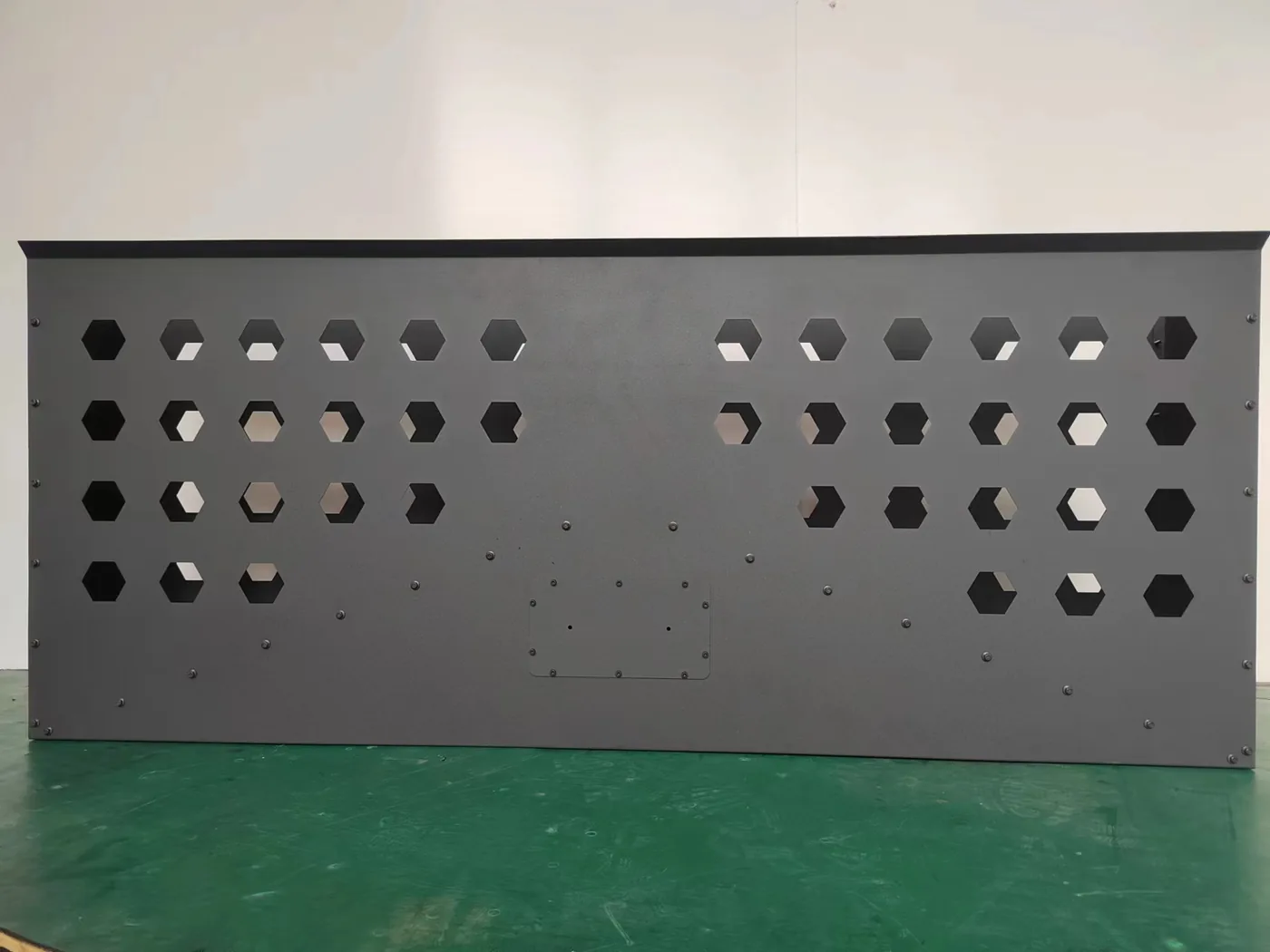

Professional cable rewinder box (1480×600×200mm) for stage hoist and rigging systems. Constructed from premium carbon steel with electrophoresis and powder coating for long-term durability. Designed to neatly store and protect excess cable loops, preventing tangles and ensuring clean backstage installations. Compatible with BRD winch series and standard stage rigging setups.
Technical Specifications
Key Features
- Robust steel enclosure protects cable loops from external damage
- Large internal volume accommodates extended cable runs
- Low-profile 200mm depth fits tight ceiling voids
- Corrosion-resistant dual-layer surface treatment
- Compatible with BRD single-point and SP series winches
Related Products

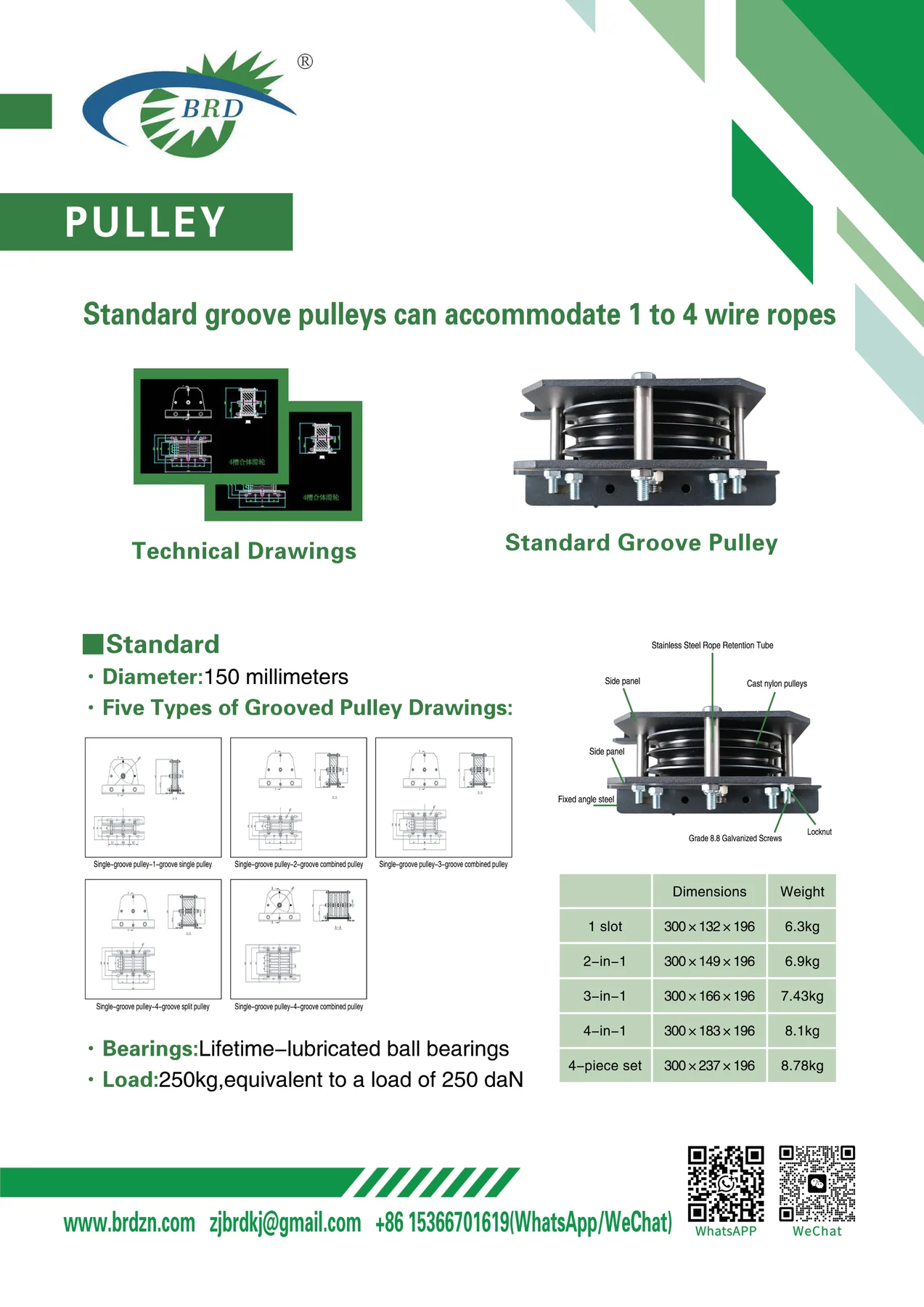

Standard Groove Pulley

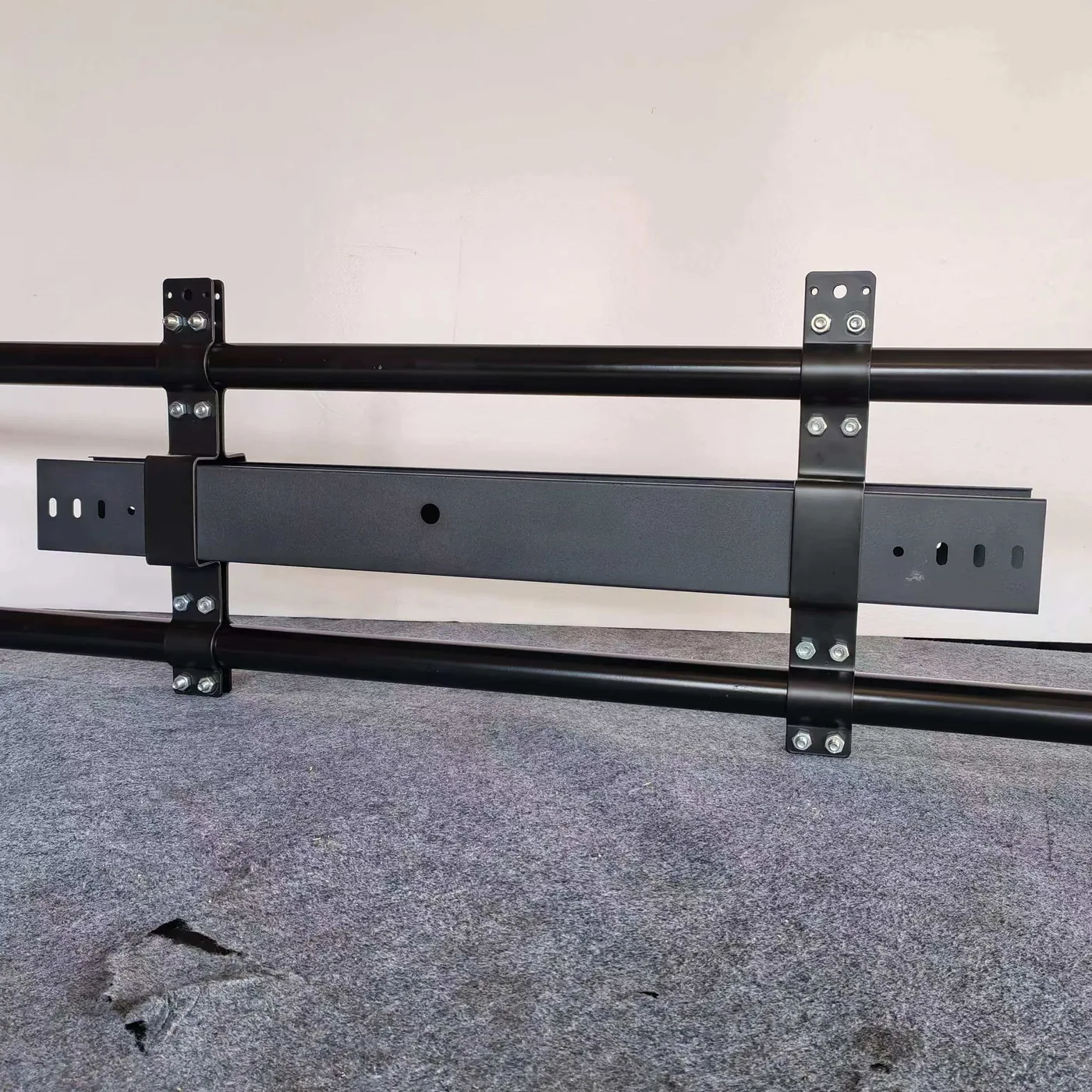

Lighting Batten

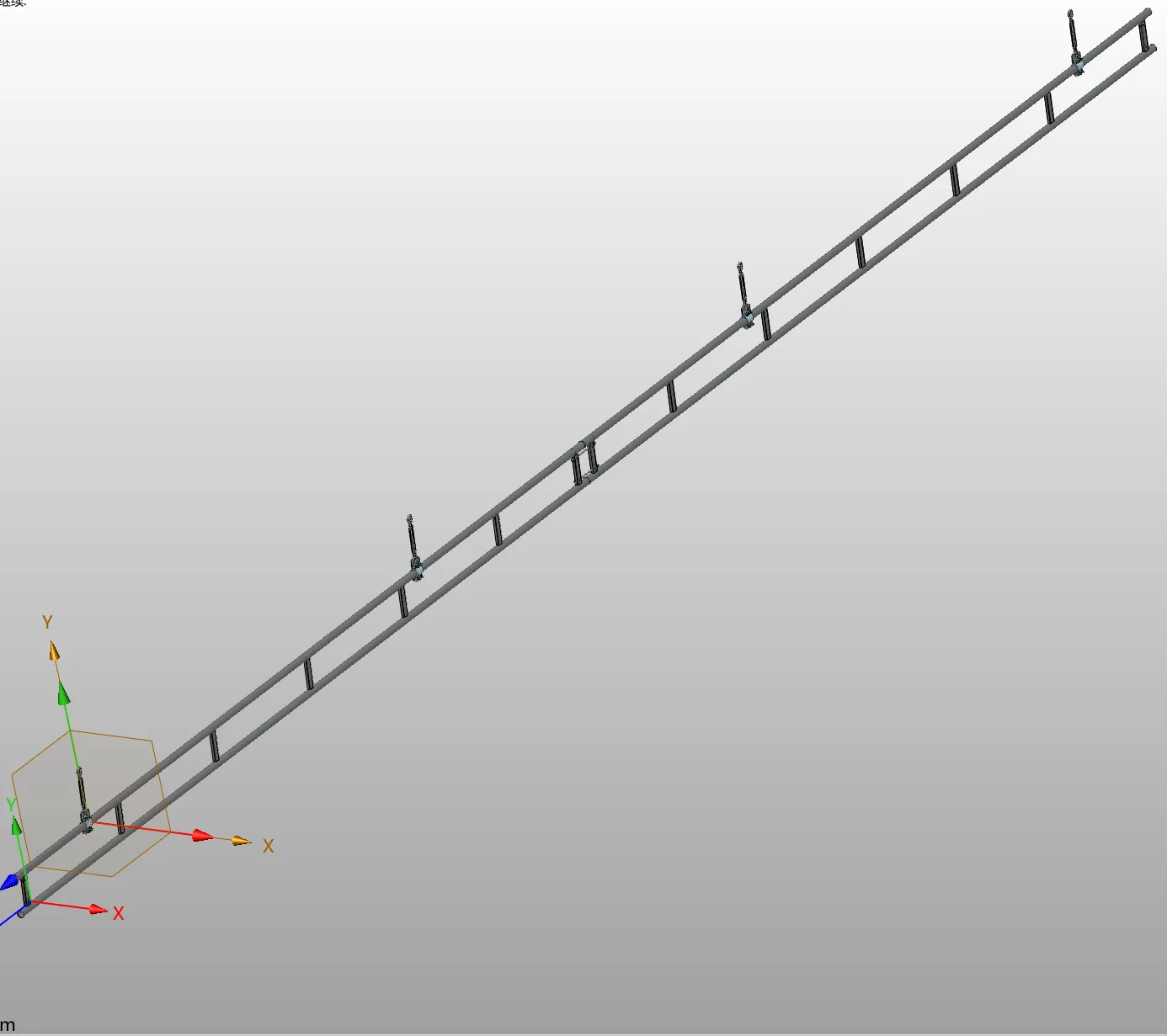

Truss Batten

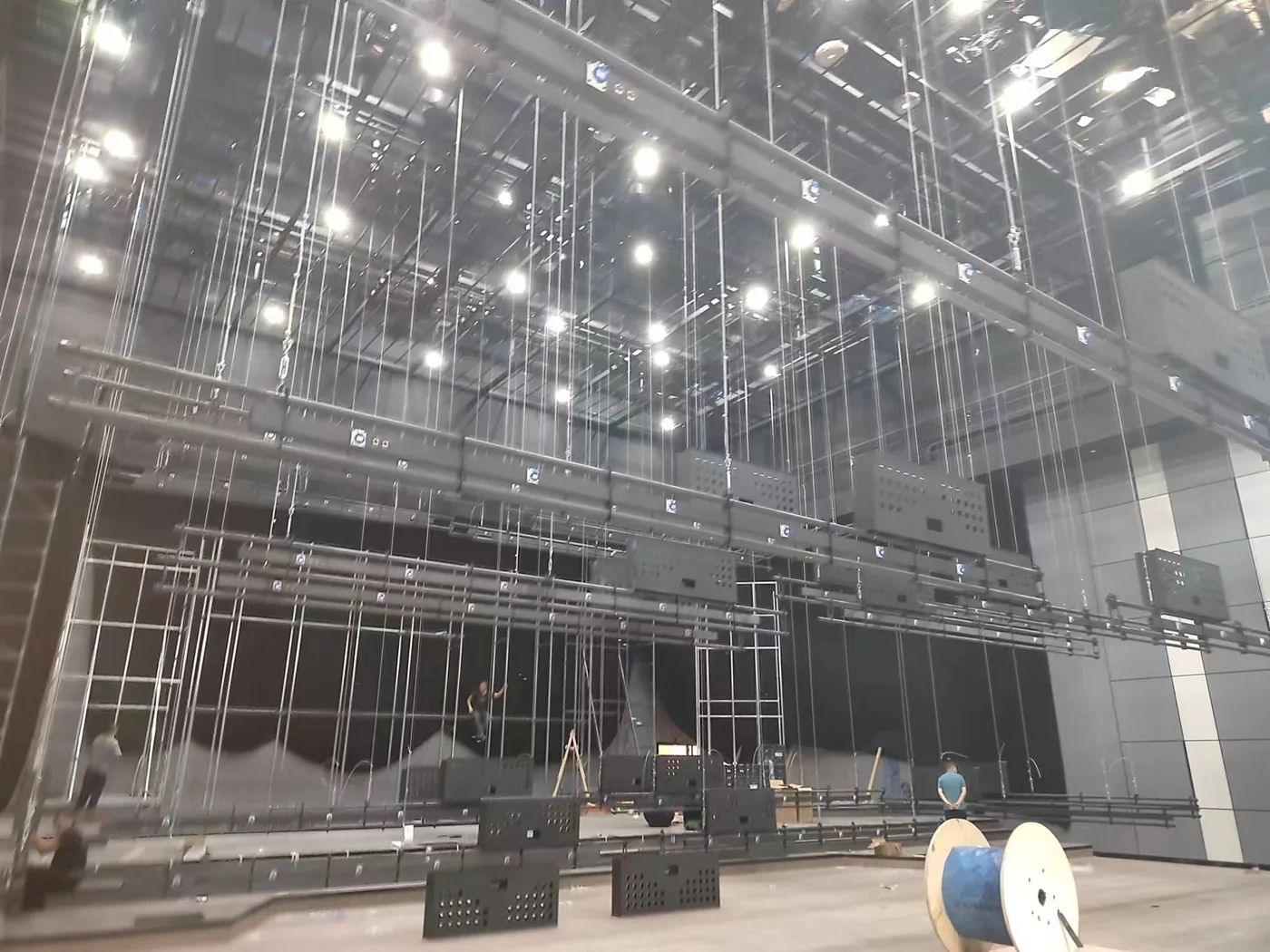

The BRD Cable Rewinder Box is an essential rigging accessory that transforms messy cable management into clean, organized, and safe backstage installations. At 1480 × 600 × 200mm, this low-profile enclosure is purpose-built for theaters, TV studios, and multipurpose venues where cable discipline directly impacts both safety and visual presentation.
Purpose-Built for Stage Rigging
Unlike generic cable trays or industrial conduit, the BRD Cable Rewinder Box is engineered specifically for stage hoist applications. The 1480mm length provides ample room for cable loops associated with 12-meter-travel hoists, while the 200mm depth is carefully calibrated to fit within standard ceiling voids and grid structures without interfering with lighting fixtures or HVAC ductwork. The 600mm width ensures the unit can be mounted alongside standard hoist drum housings without crowding the grid.
Robust Construction for Demanding Environments
The enclosure is fabricated from premium carbon steel with a dual-layer surface treatment: electrophoresis primer for corrosion resistance followed by a durable powder coat finish. This combination withstands the temperature fluctuations, dust, and occasional humidity common in backstage environments. The rigid steel shell protects cable insulation from abrasion against concrete ceilings, metal beams, and adjacent rigging hardware — a common failure point in venues using simple cable hooks or open loops.
Clean Installation, Professional Appearance

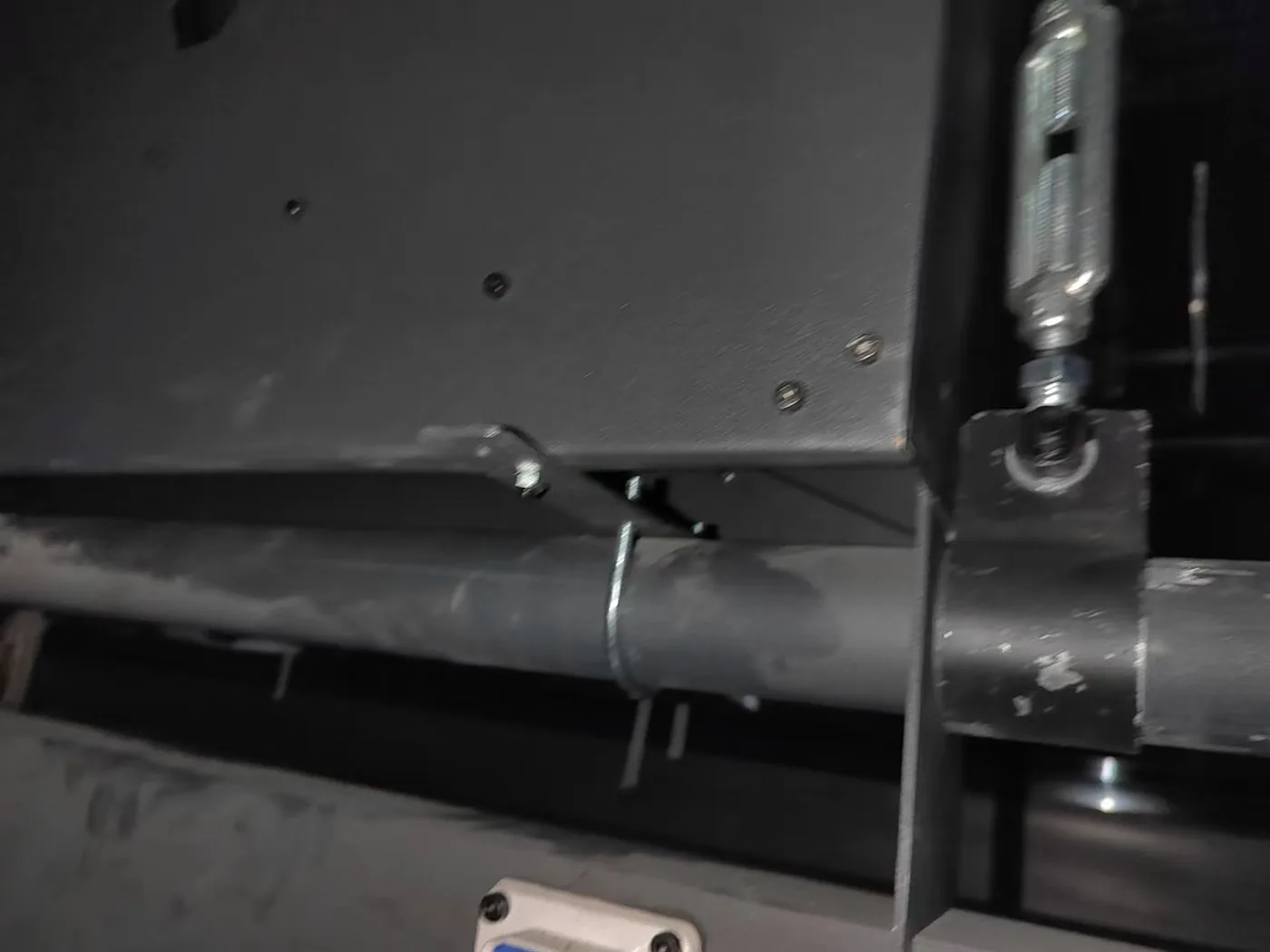

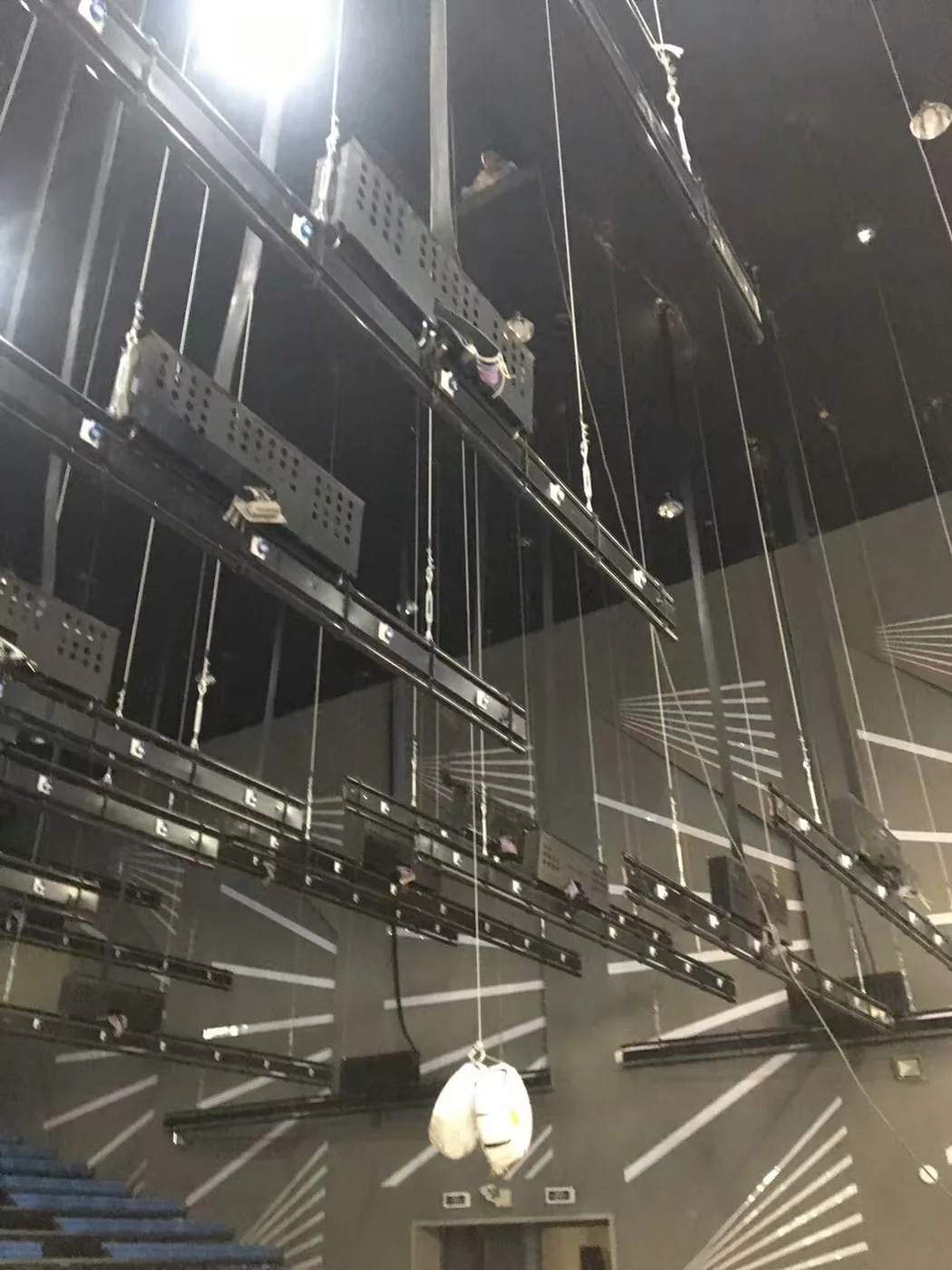

A tidy cable installation is not just about aesthetics; it is a safety requirement. Loose cables hanging from the grid create visual clutter, interfere with lighting beam paths, and pose entanglement hazards for technicians working overhead. The Cable Rewinder Box contains all excess cable within a closed enclosure, presenting a clean architectural finish that satisfies venue managers and safety inspectors alike. The box can be mounted flush to the ceiling or suspended from the grid, with multiple mounting point options for flexible installation.
Compatibility and Integration
This rewinder box is designed as part of the BRD rigging ecosystem. It integrates seamlessly with our single-point winches, SP Series hoists, and FLEXPILE disc winches. The internal layout is optimized for BRD cable specifications (5mm and 6mm wire rope, 9×2.5mm² power cables, and DMX512 signal lines), ensuring cables coil naturally without crossing or binding. While designed for BRD equipment, the standard dimensions and mounting pattern make it compatible with most industry-standard hoist brands.
As a comprehensive stage machinery manufacturer from China, BRD Technology supplies the Cable Rewinder Box both as an individual component and as part of complete rigging system packages. We provide mounting hardware, installation guidance, and dimensional drawings to ensure the box fits your specific venue ceiling configuration.
A cable rewinder keeps the cable and the rope of a stage lifting system matched at every height. Supplied as a rigging accessory, it works together with our cable rewinder boxes, wire rope and hoists to keep stages tidy and avoid cable damage during flying scenes.
